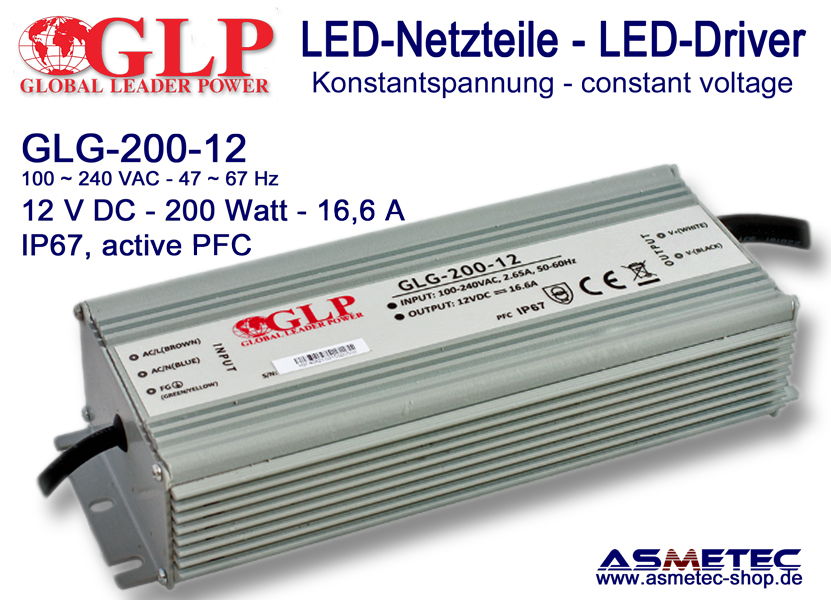

LED driver GLP GLG-200-12, 12 Volt DC, 200 Watt, PFC, IP67

Switching power supply GLP GLG-200-12, 12 Volt DC, 200 Watt, PFC, IP67

Constant-voltage power supply for LED lighting technology with integrated protection against short circuit and overload.

This high-power LED Power Supply, SELV, isolation class I, has an auto-recover protective circuit responsive in case of overload and short-circuit at the output.
It has built in active PFC. The input voltage can widely range between 90 and 264 V AC - 47-63 Hz and provides a constant output voltage of 12 V DC +/- 5% with a maximum output of 200 Watts.
It has constant voltage and constant current mode operation: If load current is lower than rated current it works as constant voltage supply, if load current reaches limit, it works as constant current supply.

The power supply is not dimmable, cooling by free air convection. The driver complies with IP67, thus may be used in weather protected outdoor area, but not under water.
It is ideal to feed 12 Volt DC LED lights such as special LED tubes, LED-strips, LED-Modules and other devices for 12 VDC supply, max 200 Watt

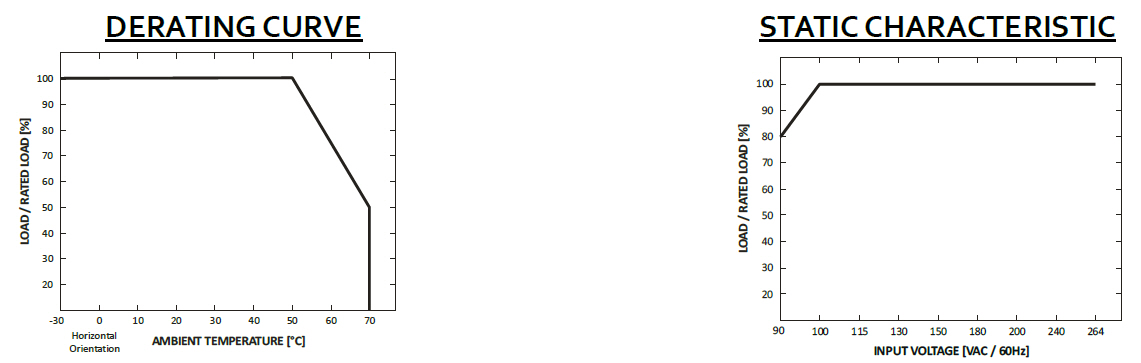

Working environment: -20 ° C ~ + 70 ° C, 20-90% rH, non-condensing.


Note: This driver is also available in version max. power of 100 / 150 / 200 / 300 Watt and as 24 Volt DC

Technical Data:
Input Voltage: 90-264 VAC, 47/63 Hz
Output Voltage: 12 VDC +/- 5%
Outpu Current: 16,6 A
Power: 200 Watt
Automatic CV and CC modus

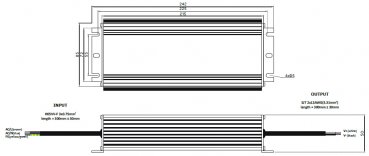

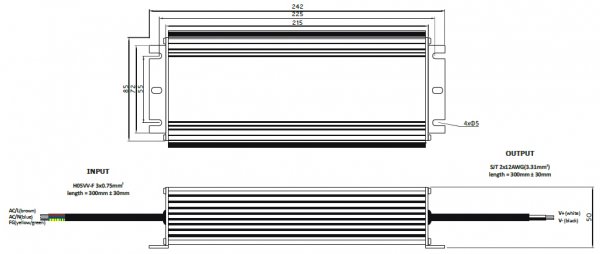

Sizes: 242 x 96 x 50 mm (L x W x H)

More information can be found in the data sheet in the download area.
