LED driver GLP GLG-100-12A, 12 Volt DC, 100 Watt, PFC, adjustable, IP65

Switching power supply GLP GLG-100-12A, 12 Volt DC, 100 Watt, PFC, adjustable, IP65

Constant-voltage power supply for LED lighting technology with integrated protection against short circuit and overload.

This high-power LED Power Supply, SELV, isolation class I, has an auto-recover protective circuit responsive in case of overload and short-circuit at the output.
It has built in active PFC. The input voltage can widely range between 90 and 264 V AC - 47-63 Hz and provides a constant output voltage of 12 V DC +/- 5% with a maximum output of 100 Watts.
The output voltage can be adjusted from 10 to 13 VDC, the output current fromk 4,5 to 8,5 A

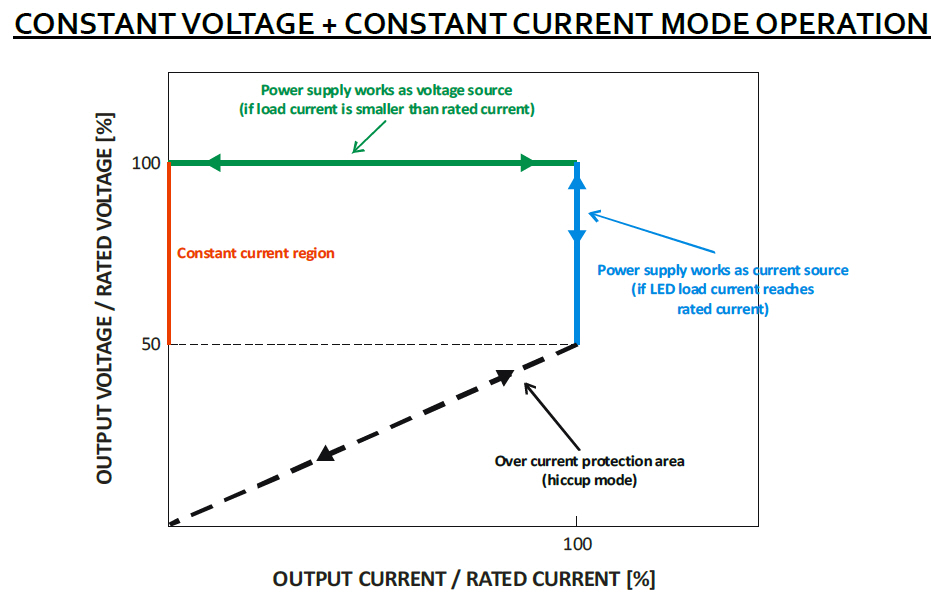

It has constant voltage and constant current mode operation: If load current is lower than rated current it works as constant voltage supply, if load current reaches limit, it works as constant current supply.

The power supply is not dimmable, cooling by free air convection. The driver complies with IP65, thus may be used in weather protected outdoor area, but not under water.
It is ideal to feed 12 Volt DC LED lights such as special LED tubes, LED-strips, LED-Modules and other devices for 12 VDC supply, max 100 Watt

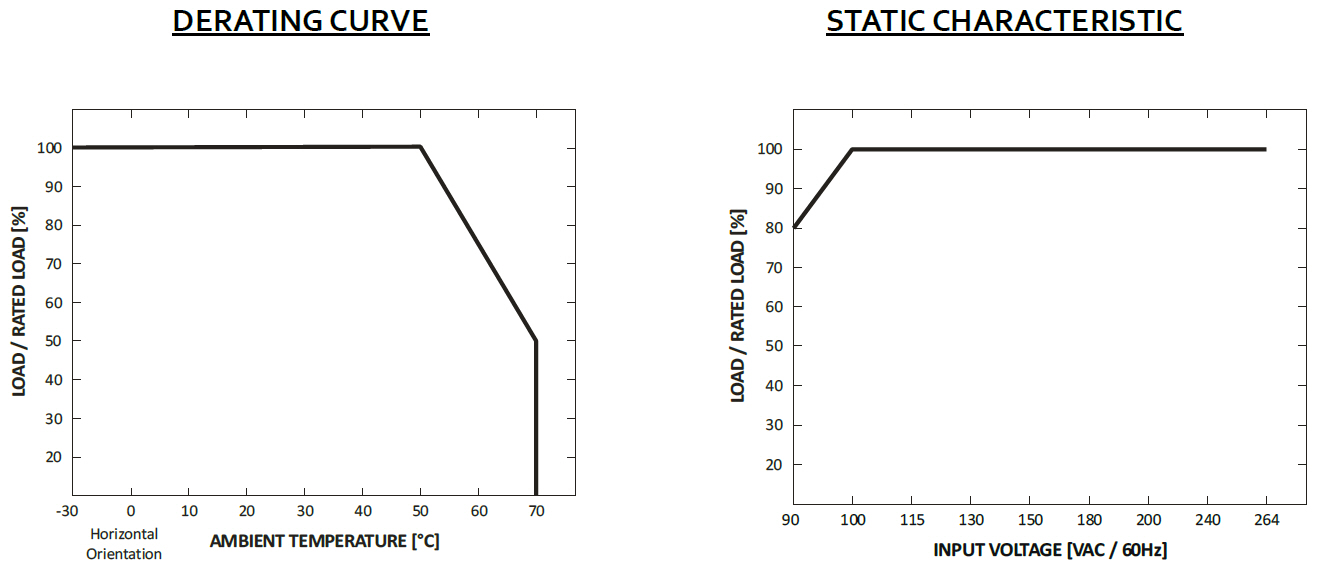

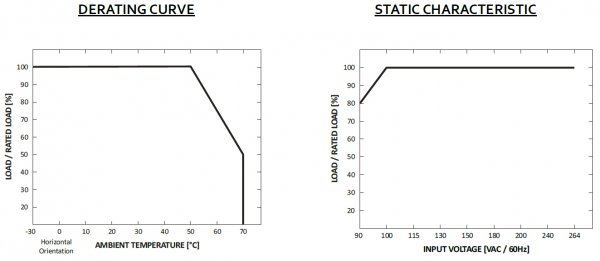

Working environment: -20 ° C ~ + 70 ° C, 20-90% rH, non-condensing.


Technical Data:
Input Voltage: 90-264 VAC, 47/63 Hz
Output Voltage: 10-13 VDC +/- 5%
Outpu Current: 4,5-8,5 A
Power: 100 Watt
Automatic CV and CC modus

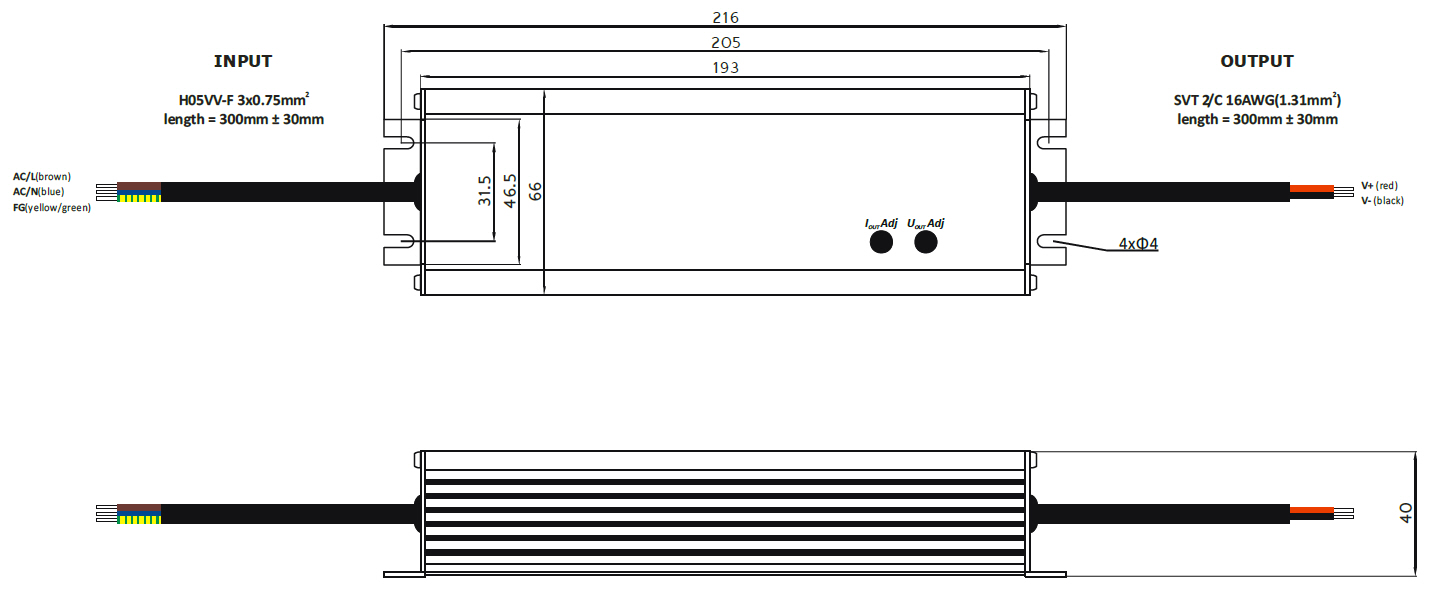

Sizes: 216 x 66 x 40 mm (L x W x H)

More information can be found in the data sheet in the download area.
