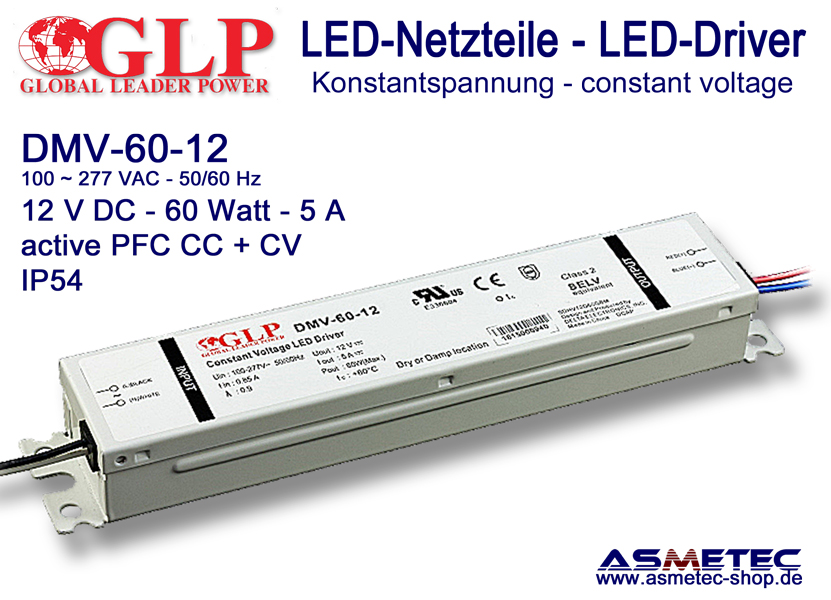

LED driver GLP DMV-60-12, 12 Volt DC, 60 Watt, PFC

Switching power supply GLP DMV-60-12, 12 Volt DC, 60 Watt, PFC

Constant-voltage power supply for LED lighting technology with integrated protection against short circuit and overload.

This high-power LED Power Supply, SELV, isolation class II, has an auto-recover protective circuit responsive in case of overload and short-circuit at the output.
It has built in active PFC. The input voltage can widely range between 90 and 277 V AC - 47-63 Hz and provides a constant output voltage of 12 V DC +/- 5% with a maximum output of 60 Watts.

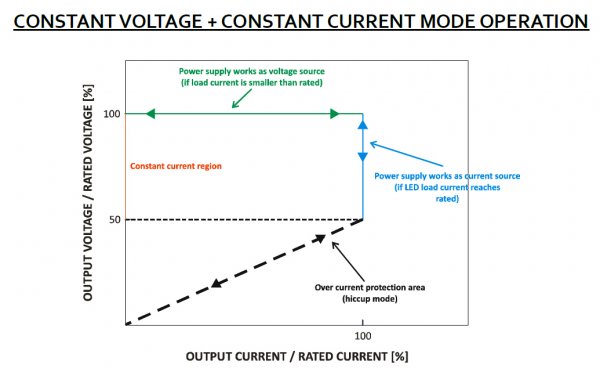

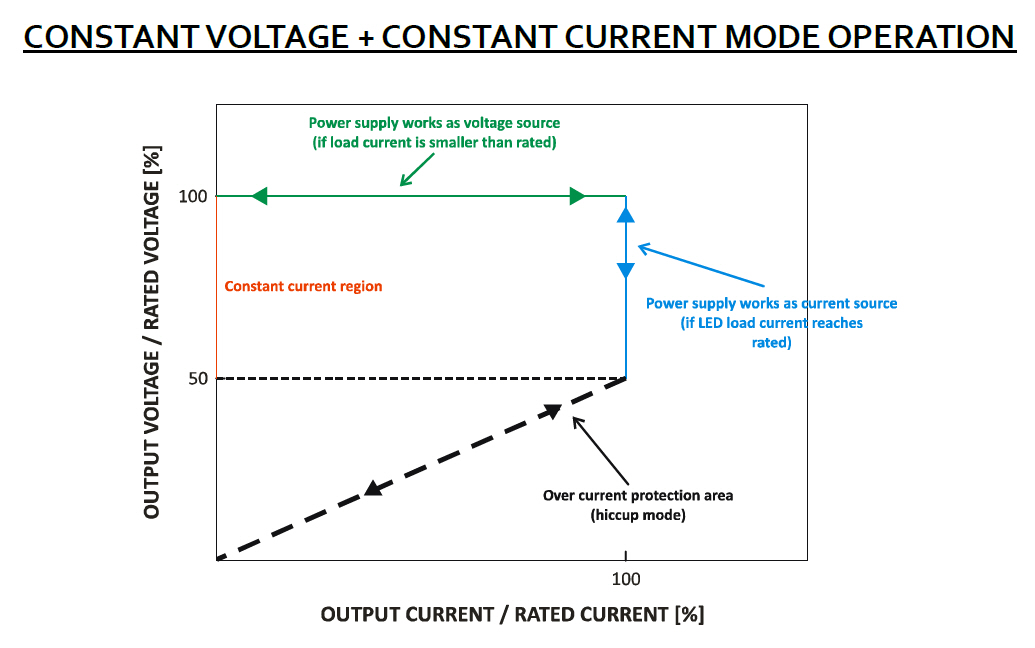

It has constant voltage and constant current mode operation: If load current is lower than rated current it works as constant voltage supply, if load current reaches limit, it works as constant current supply.
This LED driver comes with UL classification E33604 and may be used in USA. It is manufactured by the famous brand DELTA Electronics.
The power supply is not dimmable, cooling by free air convection. The driver complies with IP54.
It is ideal to feed 12 Volt DC LED lights such as special LED tubes, LED-strips, LED-Modules and other devices for 12 VDC supply, max 60 Watt
Working environment: -20 ° C ~ + 50 ° C, 20-90% rH, non-condensing.


Note: This driver is also available in version 12 VDC, as well as max. power of 80 / 100 Watt and as 24 Volt DC and dimmable versions

Technical Data:
Input Voltage: 90-277 VAC, 47/63 Hz
Output Voltage: 12 VDC +/- 5%
Outpu Current: 5 A
Power: 60 Watt
Automatic CV and CC modus
Withstand voltage: up to 3,75 kV
Isolation resistance: 100 MOhm - 500 VDC/25°C/70%rH

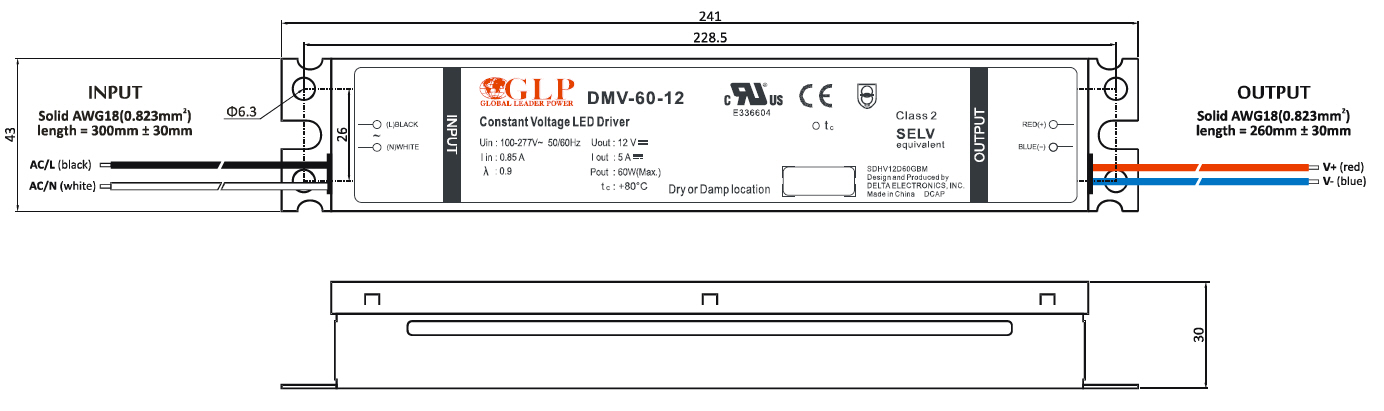

Sizes: 241 x 43 x 30 mm (L x W x H)

More information can be found in the data sheet in the download area.
