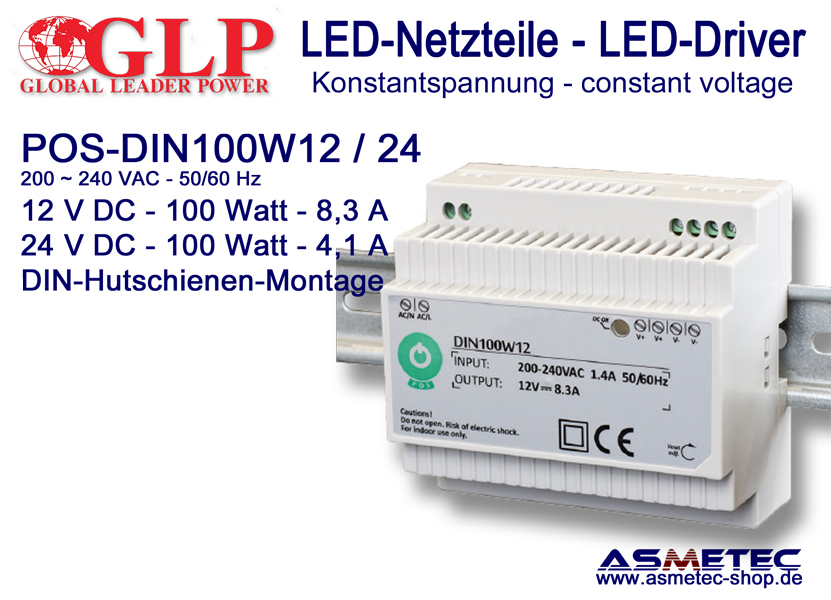

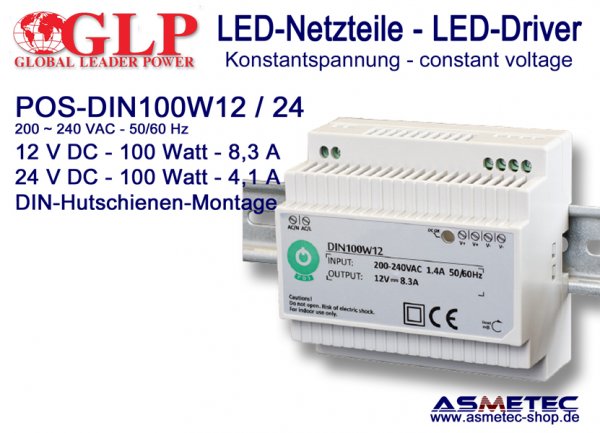

LED-driver GLP POS-DIN 100W24, 24 VDC, 100 Watt, DIN-Rail

LED power supply GLP POS-DIN 100W24, 24 Volt DC, 100 Watt for DIN-rail

Constant-voltage power supply for LED lighting technology with integrated protection against short circuit, over voltage and overload.

Special design for DIN-Rail mounting, DIN Rail TS-35/7,5 or 15

This compact, low-built LED Power Supply, SELV, isolation class II, has an auto-recover protective circuit responsive in case of overload, over voltage and short-circuit at the output. It offers a LED indicator for power on
The input voltage can widely range between 180 and 255 V AC - 47-63 Hz and provides a constant output voltage of 24 V DC +/- 5% with a maximum output of 100 Watts
The power supply is not dimmable, cooling by free air convection. The output voltage can be adjusted in a range of about +/- 5%
It is ideal to feed 24 Volt LED lights such as LED-bulbs, LED strips and modules.
Working environment: -20 ° C ~ + 50 ° C, 20-90% rH, non-condensing.
This LED driver is also available as 30 / 60 / 100 Watt and also with 12 V DC output

Technical Data:
Input Voltage: 180-255 VAC, typical 230 VAC, 50/60 Hz
Output Voltage: 24 VDC +/- 5%
Output current: 4,15 A
Power: 100 Watt
Isolation Class: II
Sizes: 93 x 100 x 56 mm (L x W x H)
Suitable for DIN-Rail 35 mm
