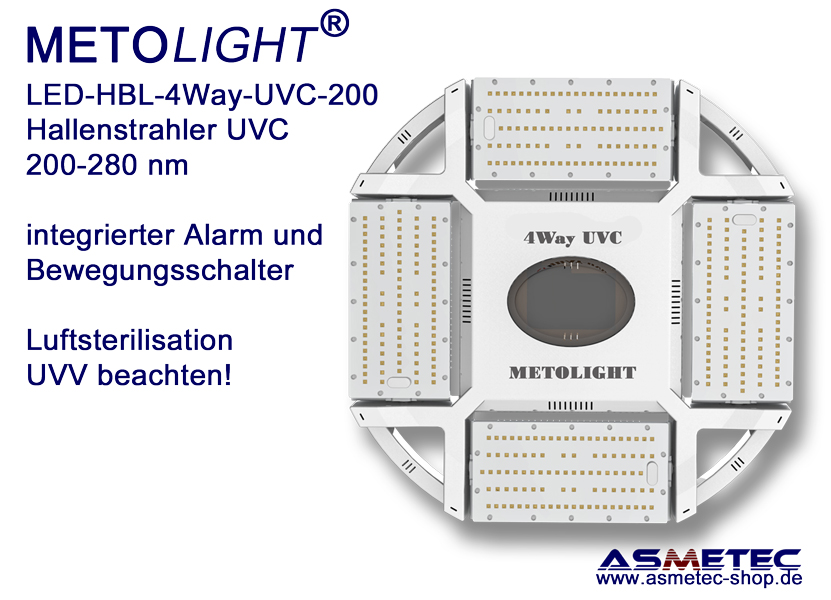

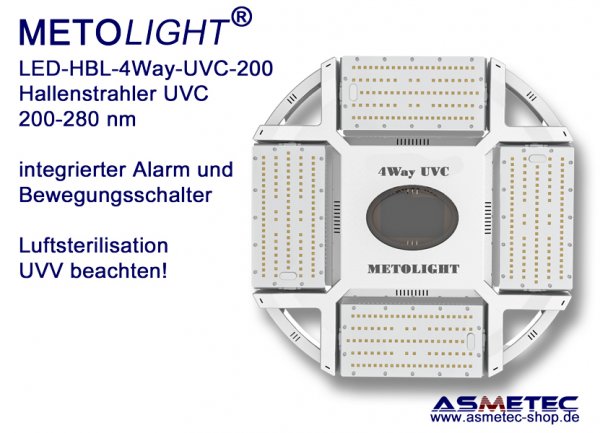

METOLIGHT LED-HBL-4Way-UVC-200 - 200 watts - UVC-200-280 nm
UVC highbay high bay floodlight for disinfection / sterilization with 4 individually adjustable UVC LED modules

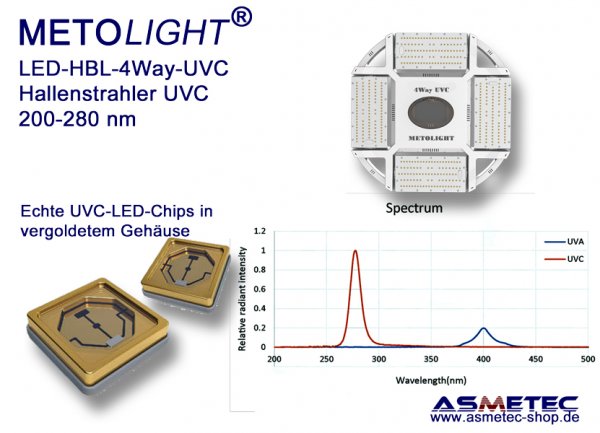

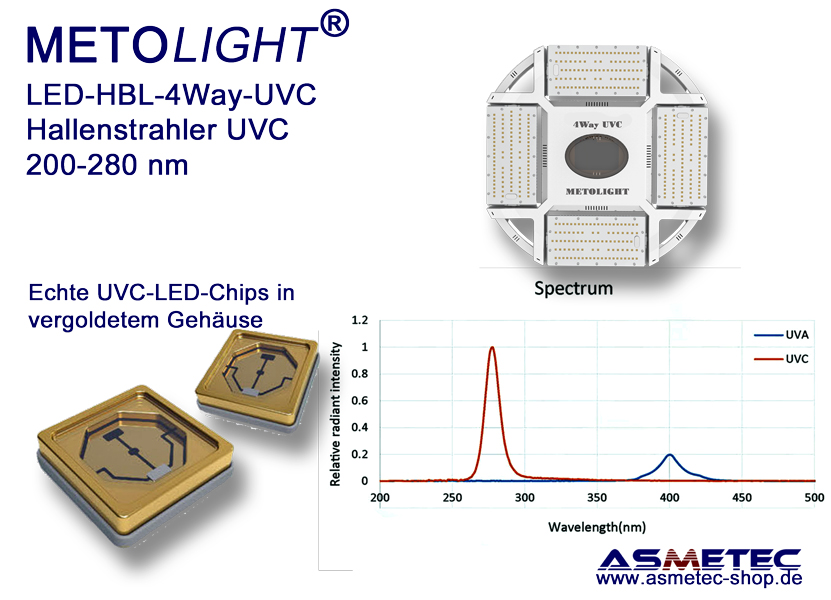

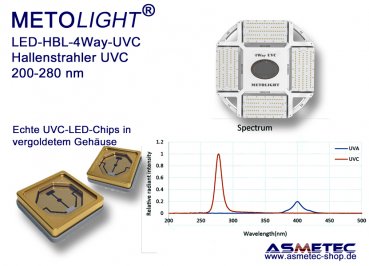

Newly developed LED UVC high bay floodlight with dedicated UVC LEDs with an effective power of 80% in the range of 270-280 nm, as well as approx. 20% in UVA Range 390-410 nm (visible light). The LED chips type UV 3535 from the Japanese brand OHARA are embedded in a gold-plated housing and consist of 2 LED segments, for UVC and UVA radiation.
This high bay luminaire emits UVC light in the range from 200-280 nm, peak 270 nm and is used for air and surface disinfection. To protect people and animals, this UVC lamp must not be operated when there are people or pets in the room, because UVC radiation can cause severe skin irritation. Our 4Way UVC lights are therefore equipped with a negative motion sensor that switches the light off immediately when motion is detected. An adjustable alarm also emits a signal tone during operation.
The installation must be carried out by a trained electrician in compliance with UVV.
Note: Under no circumstances look into the switched-on light without appropriate protective goggles!
UVC light has long been known for its disinfecting or sterilizing effect, since this radiation destroys the DNA of microorganisms such as viruses, bacteria, germs, spores, etc. and thus interrupts cell growth. Previous UVC lamps in the form of fluorescent tubes or high-pressure mercury lamps only emit approx. 10% UVC light, the rest of the radiation is visible light and thermal radiation. In addition, such lamps have the disadvantage of a long heating time and, in the event of breakage, the release of toxic mercury

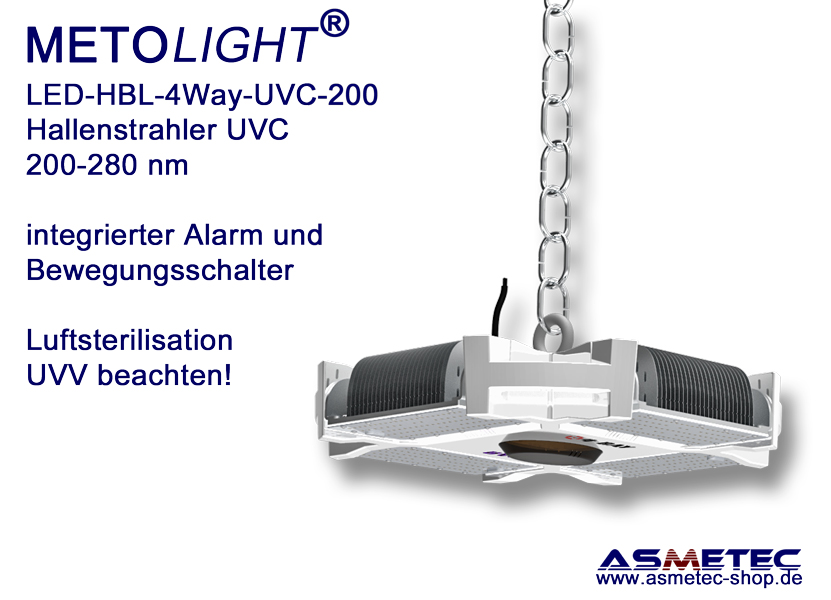

METOLIGHT UVC LED lamps have a significantly longer life time than conventional UVC lamps. Our LED-UVC-LED lights are equipped with MEANWELL HLG power packs, which can easily be replaced in the event of a defect. The housing is made of die-cast aluminum, 4 separately adjustable LED modules with attached lamellar heat sinks. The HBL-4Way-UVC is suspended at the same height with an on-site chain through a centered eyelet.
Note: safety regulations must then be observed! UVC radiation is very dangerous for all living beings, including humans and animals, and causes serious skin and eye damage if you are unprotected in the UVC light beam. Therefore, these luminaires may only be in operation when nobody is in the radiation area. The lights have a sensor that switches the light off immediately when motion is detected, but in Germany this is not sufficient as the sole UVV protection. The luminaire must be installed as a free emitter by an electrician with UVV training. We therefore urgently recommend installation together with a UVV switch with door contact. This switches the light off when the door is opened and can only be switched on again manually from the outside. For more information, please refer to the data sheet.
Areas of application:
disinfection, sterilization of air, surfaces, water,
the delivery time is approx. 4 weeks, we only store a few samples of this UVC lamp.
