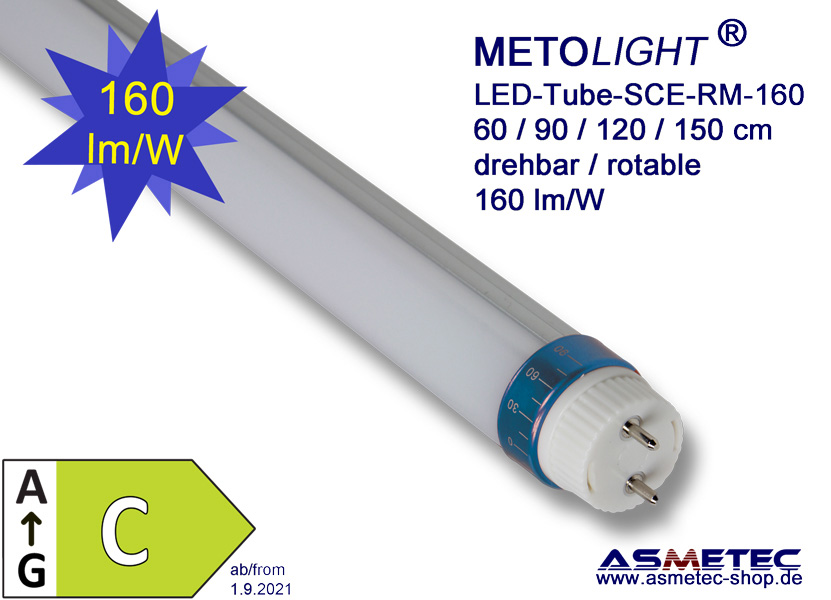

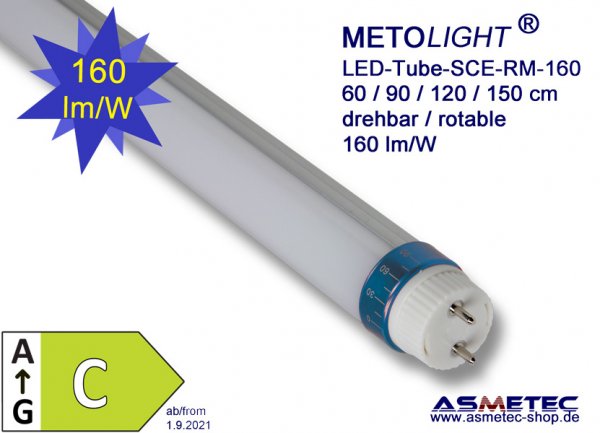

METOLIGHT LED-Tube-120-SCE-RM-160, 120 cm, 18 Watt, T8, 2800 lm, matted, cold white

METOLIGHT LED-Tube-120-SCE-RM-160, 120 cm, 18 Watt, 2800 lm, matted, cold white

LED Tube single side connected for magnetic ballast and direct 230 Volt AC, extra bright

Extra bright by Epistar SMD with 160 lm / W, CRI Ra >80 - Energy Class C

The new generation of METOLIGHT LED-tubes - 2.5 times as bright as fluorescent tubes, 1,5 times as bright as regular LED tubes.
This makes bright light really efficient!

No electrical shock:
The Asmetec SCE-technology ensures that there is no power creep voltage from one end of the tube to the other.

The matted shell ensures anti glare lighting in light beam angle of about 140°.
The optimal mounting height is from 2 - 4 m.
Rewiring of the luminaire or even remove the existing magnetic ballasts is not necessary. The METOLIGHT-SCE-RM works on all conventional magnetic ballasts as well directly to 230V AC. You only need to replace the existing starter by the special fused LED-starter supplied with each tube.(Asmetec item -no.101495). However luminires with tandem circuit (1 ballast drives 2 tubes) must be checked before. Here it may be that the tube does not light up.
Specials:
The LED tubes are equipped with rotable-fixable sockets so that they can also be used in luminaires with side G13 bases. In addition, the base caps do not increase the tube diameter, which means that the tubes can also be used in luminaires with watertight coupling nuts. The completely newly developed power supply unit with flicker-free technology ensures uniform, fatigue-free lighting. Operation on emergency power systems with DC voltage between 100 and 240 V DC is possible.

Application:
This LED-tube in light colour 5800-6400K - cold white is ideal for use in warehouses, hallways, car park, indirect lighting etc. Mounted in IP65 luminaires it also can be used outdoor or in fridge rooms. It cannot be used with dimmers and with electronic ballasts.

Specials:
High efficiency SMD LEDs 160 lm/W, CRI Ra >80, PC Case, 26 mm - T8 Diameter, rotable-lockable G13 sockets, special-aluminium core PCB for best heat dissipation and long lifetime, double isolated, short-break-proof built in driver. Sturdy aluminum heat sink, extra light, unbreakable construction, Creep voltage proof > 3750 volts, High dielectric strength, no flickering through by voltage deviations. 5 years limited warranty (see warranty conditions in download section)

Easy to install:
Switch off luminaire - remove old fluorescent tube and old starter - insert fused METOLIGHT LED-Starter and METOLIGHT LEDtube-SCE - switch on - that's it.

Single reviev at Asmetec:
Each LED-tube undergoes a test routine in our Asmetec-Light-Lab to verify the general function and the main technical data. In addition to this each tube undergoes a 1500 Volt insulation and creep voltage test routine. The tests of all photometric data, ISO-Lines, EMC, switch cycles etc are made for each lot. Customers may receive test reports upon request.

Notes:
Also available in light colour 3000K / 4000K / 5000K and with clear shell as well as with UV 470 nm and UV 520 nm filter for use in Yellow Rooms. We also supply LED-Tubes with CRI Ra > 90 and eficiencies up to 180 lm/W
