LED-Module 180-20-CW, 20 Watt cold white

METOLIGHT LED module 180-20-CW, 20 watts, 2000 lm, cold white

LED lighting module with magnetic holder

Diameter 180 mm, 20 Watt replaced compact tube 40-50 Watt
Simple installation in wall and ceiling lamps to replace traditional compact and circular tubes.

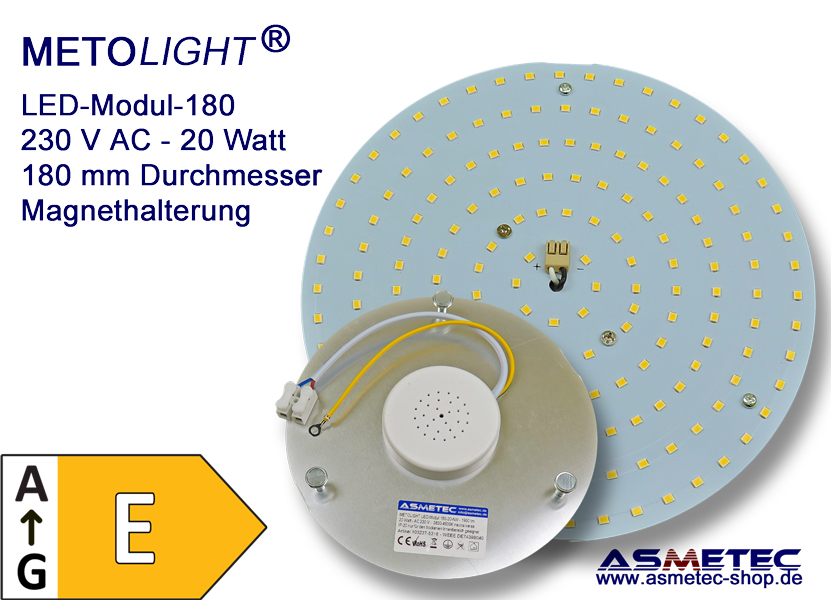

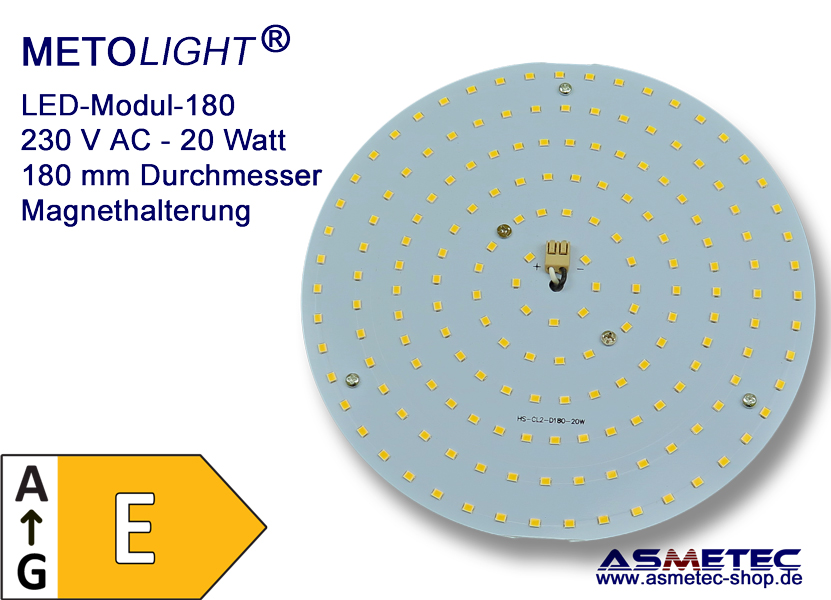

The newly developed METOLIGHT LED modules are equipped with highly efficient SMD LEDs brand EPISTAR on an aluminum core printed circuit board. An integrated power supply allows the direct connection to the 230 volt mains.

By 3 powerful industrial magnets, the module can be safely used in luminaires with sheet metal chassis. In full-plastic lamps one can attach the modules by using heat-resistant 2K adhesive.
In standard we deliver these modules in different diameters and wattages in the light colors warm white (2800-3300K), neutral white (3800-4500K) and cool white (58800-6500K) with CRI Ra> 80.
Rectangular shapes, special sizes and shapes, optional dimming and motion sensors are also possible.

Through the full assembly of the board, a homogenous, shadow free light is emitted. The small installation depth of only 20 mm allows installation in almost any wall or ceiling luminaire, where previously compact tubes with sockets G23, G24, 2G7, 2G10, 2G11, GR10q etc were installed.
The installation must be performed by a qualified electrician when power is disconnected because the existing lamp sockets need to be removed. The LED modules are then simply connected via the supplied terminals to the power supply. The electrician must reconfirm the CE conformity of the luminaire.
The LEDs are not interchangeable.

Warranty:
In this LED modules we grant 2 years warranty (see warranty conditions in Shop Download area)
ASMETEC Quality:
Each individual module is tested in Kirchheimbolanden for proper operation prior to shipment with us. You can request free per batch a test report from our Lichtmesstechnik. We create data for light calculation also in our own lighting laboratory - IES
