METOLIGHT LED-Downlight - Magic Module 150 - 15 Watt-WW, warm white, 1500 lm
LED module suitable for rings 190 mm / 230 mm and 285 mm
with PWM-dimmable constant current power supply unit
Product description:
METOLIGHT Downlight Magic LED modules with diameter 150 mm, power 15 W, light colour 3000K, warm white, 1500 lm, dimmable, IP54
This LED module can be used in luminaire rings 190 mm, 230 mm and 285 mm without tools. The IP protection class of the Magic modules is IP54, so that these LED downlights can also be used in humid rooms.
The modular design and the waterproof plug connection between the downlight module and LED driver enable quick and easy replacement in the event of a defect or conversion. With approx. 1500 lm this LED recessed ceiling light is as bright as a 150 watt incandescent lamp.
The LED modules are equipped with Samsung SMD 5630 with CRI >80, and efficiency >140 lm/W. To increase the durability, however, the LEDs are supplied with less current, so that the luminaire efficiency is 100-120 lm/W, corresponding to energy class A+ (EU 2012) E (EU 2019).

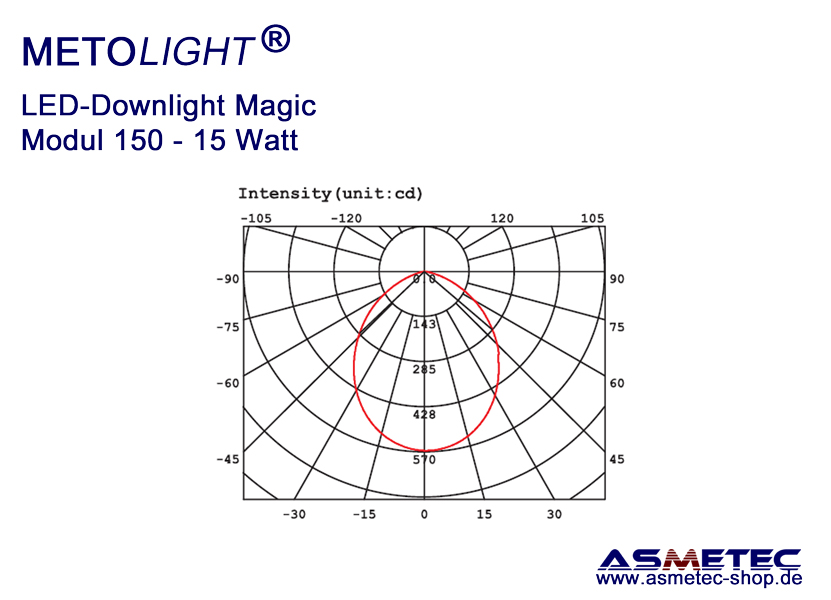

Note: The light rings are not included in the scope of delivery. They can be ordered separately in white, silver or black. The 190 mm luminaire ring can cover ceiling cut outs from 160 to 180 mm, the luminaire ring 230 mm can cover ceiling cut outs from 180 to 220 mm and 285 mm ring can cover ceiling cut outs from 230 to 275 mm. The light angle is approx. 140°
A PWM-dimmable constant current power supply with an input voltage range of 180 - 240 VAC, output voltage 24-46 VDC - 300 mA is included. The special feature of the CC supply is the higher efficiency and the integrated protection against overheating. Optionally, we also supply digitally dimmable power supplies (0-10V, DALI) for this luminaire at an extra charge.
Technical Data:
Input voltage module: 24-46 VDC - 350 mA
Input voltage LED driver: 180-240 VAC, 50/60 Hz
Power consumption: 15 watts (+/- 1)
Light colour: 3000 K - warm white
CRI Ra >80
Luminous flux: > 1500 lm
Dimensions: 150 mm diameter, 40 mm height
Suitable light rings: 190 mm / 220 mm / 285 mm
Available versions:
Light colours 3000K warm white, 4000K neutral white, 6000K cold white.
Wattages: 12 Watt / 15 Watt / 18 Watt / 30 Watt / 40 Watt
Application:
General lighting in dry interior areas, e.g. in offices, hotels, restaurants, bars, shops, laboratories, medical practices, inhouese lighting, bathroom lighting and many other applications
Installation:
The LED luminaire is used in cavity walls or hollow ceilings using the luminaire rings to be ordered additionally. Spring terminals hold the luminaire securely in the appropriate opening.
The supplied LED drivers must be connected to the 230 V mains cable provided by a qualified electrician. One LED driver must be used per luminaire; under no circumstances may several modules be connected to only one LED driver.
This downlight can also be switched automatically via
motion detector/sensor switch .
Warranty:
We offer a 3-year limited warranty on this lamp (see warranty conditions in the download area)
Synonyms:
The LED downlights are also known as: recessed ceiling lamp, LED lamp
