LED-Downlight Magic 125-145-12W-WW, 3000K, 1100 lm

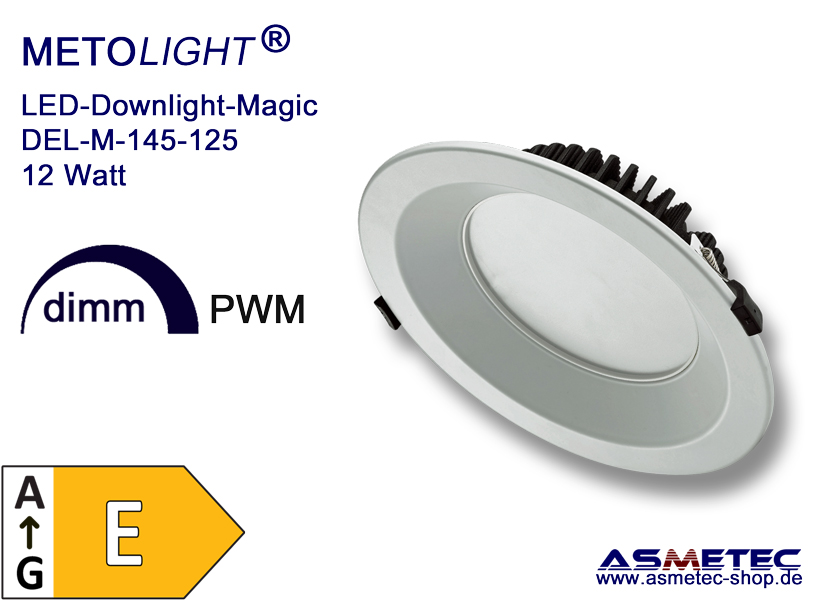

METOLIGHT LED-Downlight - Magic 125-145-12 W-WW, warm white, 1100 lm

Complete set consisting of LED module 110 - 12 W, white ring 145 mm and PWM-dimmable CC power supply

For ceiling cut outs from 125 to 135 mm

Product description:
METOLIGHT Magic downlight 125-145-12 Watt-NW with LED module 110, 12 Watt, light colour 3000K, warm white, 1150 lm, dimmable, IP54
A white luminaire ring 145 mm and the matching constant current power supply unit are included in delivery.

The IP protection class of the Magic modules is IP54, so that these LED downlights can also be used in damp rooms, kitchens and bathrooms. The modular design and the waterproof plug connection between downlight module and LED driver enable quick and easy replacement in the event of a defect or conversion. With approx. 1200 lm this LED recessed ceiling light is as bright as a 100 watt incandescent lamp.

Note: If you need other ring diameters, please order the parts separately (categories Magic-Rings and Magic-Modules)

The LED modules are equipped with Samsung SMD 5630 with CRI >80, and efficiency >140 lm/W. To increase the durability, however, the LEDs are supplied with less current, so that the luminaire efficiency is 100-120 lm/W, corresponding to energy class A+ (EU 2012) E (EU 2019).
A PWM-dimmable constant current power supply with an input voltage range of 180 - 240 VAC, output voltage 24-46 VDC - 300 mA is included. The special feature of the CC supply is the higher efficiency and the integrated protection against overheating. Optionally, we also supply digitally dimmable power supplies (0-10V, DALI) for this luminaire at an extra charge.

Technical Data:
Input voltage module: 24-46 VDC - 300 mA
Input voltage LED driver: 180-240 VAC, 50/60 Hz
Power consumption: 12 Watts (+/- 1)
Light colour: 3000 K - warm white
CRI Ra >80
Luminous flux: > 1100 lm

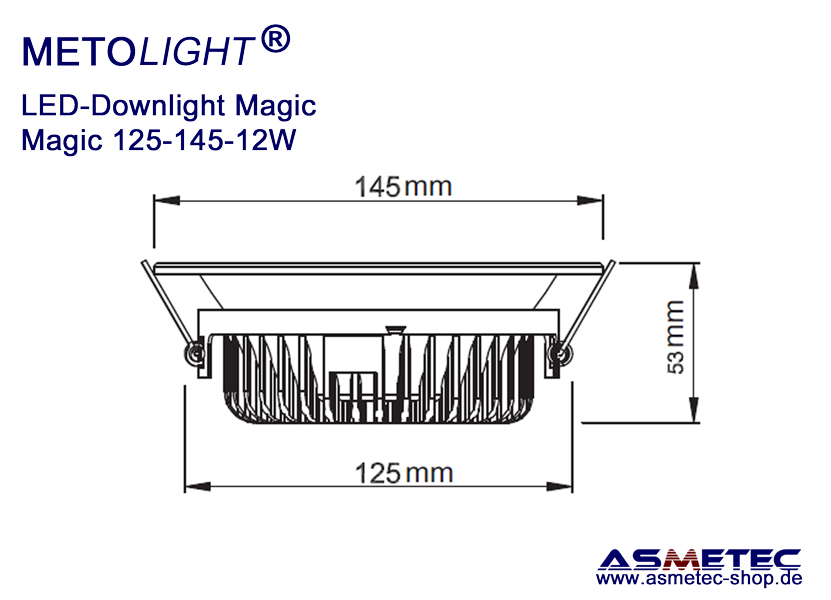

Dimensions:
Outer diameter: 145 mm
Ceiling cut-out: 125 - 135 mm
Installation depth: > 55 mm


Application:
General lighting in dry interior areas, e.g. in living rooms, kitchen, bath room, offices, hotels, restaurants, bars, shops, laboratories, medical practices and many other applications

Installation:
The LED luminaire is used in cavity walls or hollow ceilings using the luminaire rings to be ordered additionally. Spring terminals hold the luminaire securely in the appropriate opening.
The supplied LED drivers must be connected to the 230 V mains cable provided by a qualified electrician. One LED driver must be used per luminaire; under no circumstances may several modules be connected to only one LED driver.
This downlight can also be switched automatically via motion detector/sensor switch .

Warranty:
We offer a 3-year limited warranty on this lamp (see warranty conditions in the download area)

Synonyms:
The LED downlights are also known as: recessed ceiling lamp, LED lamp
