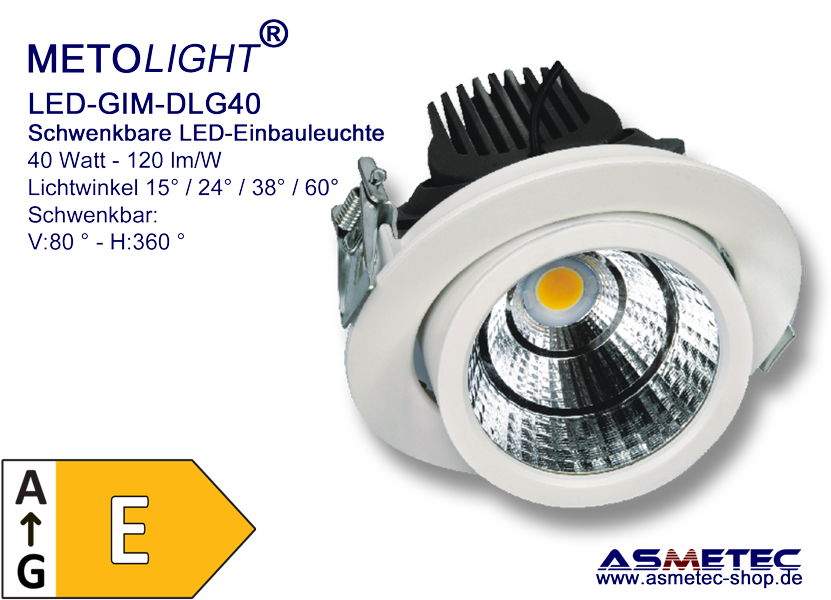

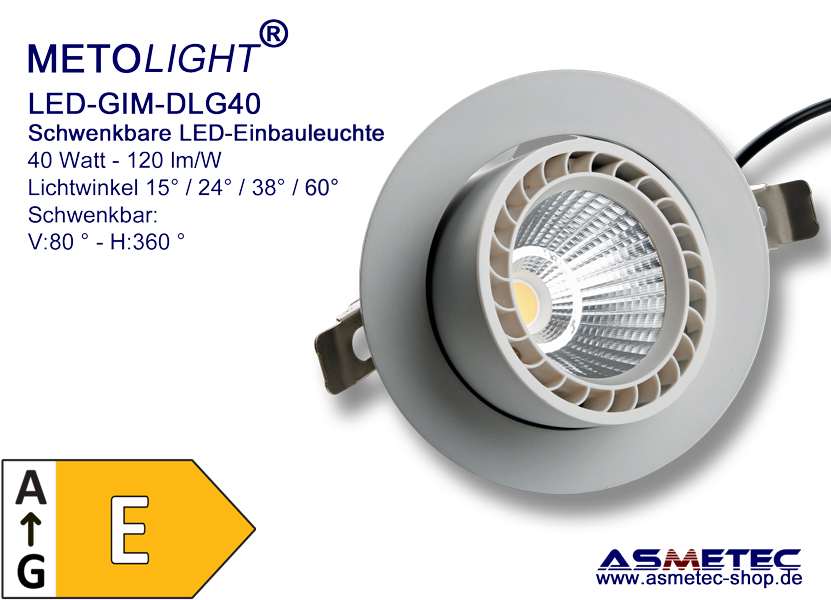

LED-Gimbal DLG40, 40 Watt, 4000 lm, warm white

METOLIGHT LED-Gimbal-Light DLG40 - 40 Watt, 4000 lm, warm white

Revolving and swivelling recessed ceiling luminaire, 100 lm/W, CRI Ra >85

The timelessly beautifully designed METOLIGHT Gimbal DLG series LED recessed ceiling luminaires are robust LED luminaires for professional continuous use. They are equipped with a CITIZEN high-performance LED-COB of the latest generation with efficiency above 100 lm/W and comply with energy class E (EU 2019). With a colour rendering value CRI >85 the illuminated objects are reproduced in their natural colours. Optionally we also supply these lamps with CRI Ra>90.

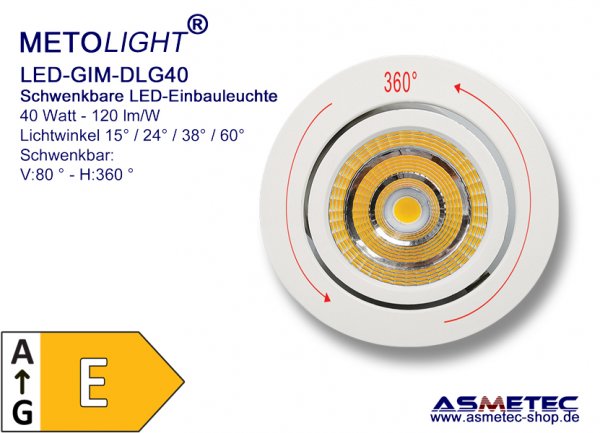

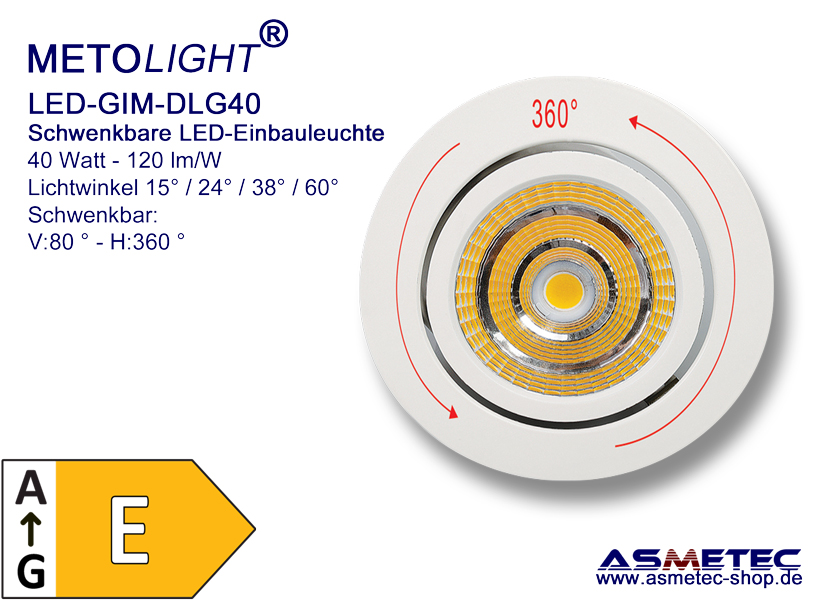

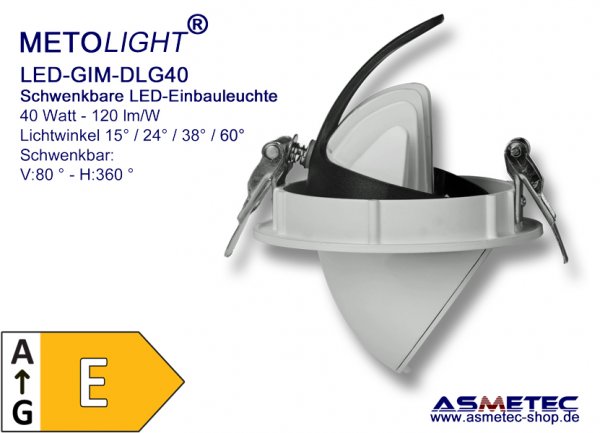

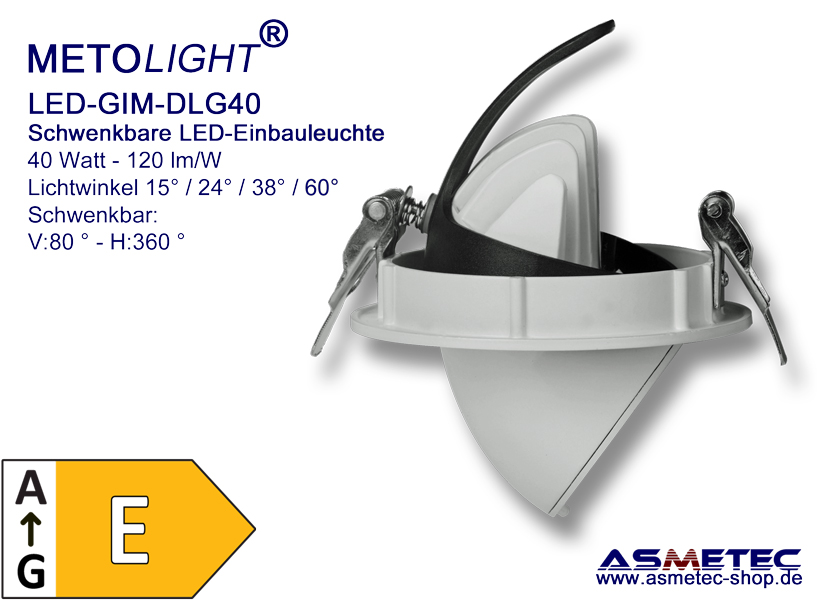

The Gimbal luminaires are designed for installation in ceilings. After installation they can be rotated horizontally by 360° and swivelled vertically by 80°. The integrated high-gloss reflector with diamond-cut lines provides a bundled, low-glare light beam with an exit angle of approx. 15 to 60° (depending on the model). The LED chip can be replaced by ASMETEC in case of repair.
The external constant current power supply is included in the scope of delivery and is simply plugged in. It is optionally also available in dimmable version (0-10 Volt, DALI, Triac).
Sufficiently dimensioned aluminium heat sinks ensure maintenance-free operation over many thousands of operating hours. The low heat generation, the UV-free light and the approx. 70% lower power consumption compared to conventional lighting technology make this LED luminaire particularly interesting for lighting in shops or boutiques, museums, galleries, exhibitions - wherever economical, bright light without UV radiation is required.
The LED gimbal DLG series is available in the light colours warm white (2800-3200K) and neutral white (3800-4200K). In the standard version, we supply luminaires with a 38° angle of light, the light angles 15°, 24° and 60° are also available as an option.

Areas of application:
LED lighting in shops, boutiques, museums, galleries and libraries
Rotatable and swivelling after installation for precise alignment of the light beam

Technical data:
Power consumption: 40 Watt
Power supply: 220 - 240 VAC - 50/60 Hz - 36 VDC - 940 mA
Luminous flux warm white: 4000 lm
Luminous flux neutral white: 4300 lm
Light angle: 38°.

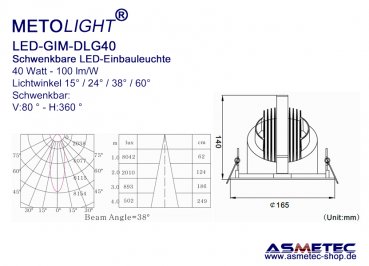

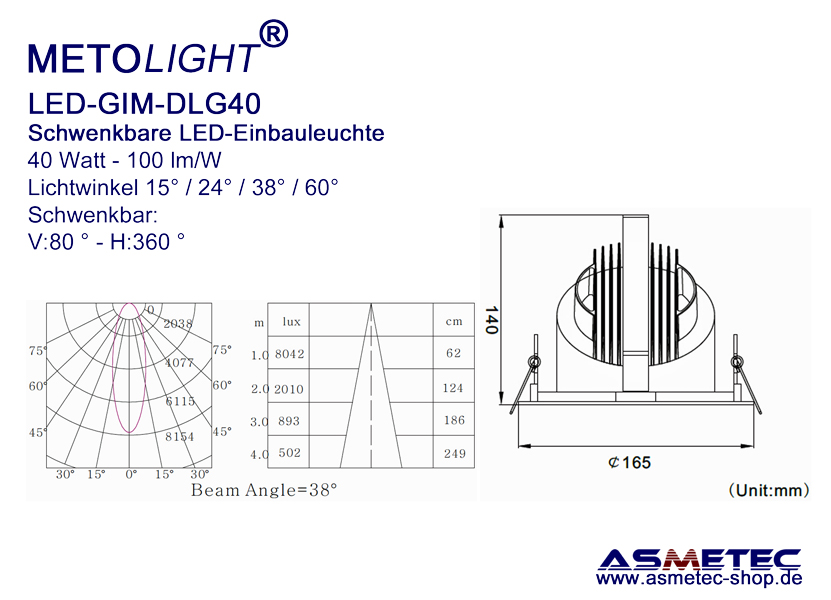

ceiling cutout 155 mm
Outer diameter: 165 mm
Installation depth: 140 mm
Weight: approx. 1,3 kg

Warranty:
We grant a 3-year guarantee on this LED gimbal light (see warranty conditions in the shop download area)

Asmetec quality:
Every single luminaire is tested for perfect function before dispatch at our factory in Kirchheimbolanden. On request, you can receive a test report from our photometry technology for each batch free of charge. We also create IES data for light calculation in our own lighting laboratory.
Synonyms:
LED gimbal luminaires are also known as tiltable recessed LED luminaires, recessed spots tiltable, recessed LED spotlights, LED downlight, swivel-head luminaires, cardan luminaires.
