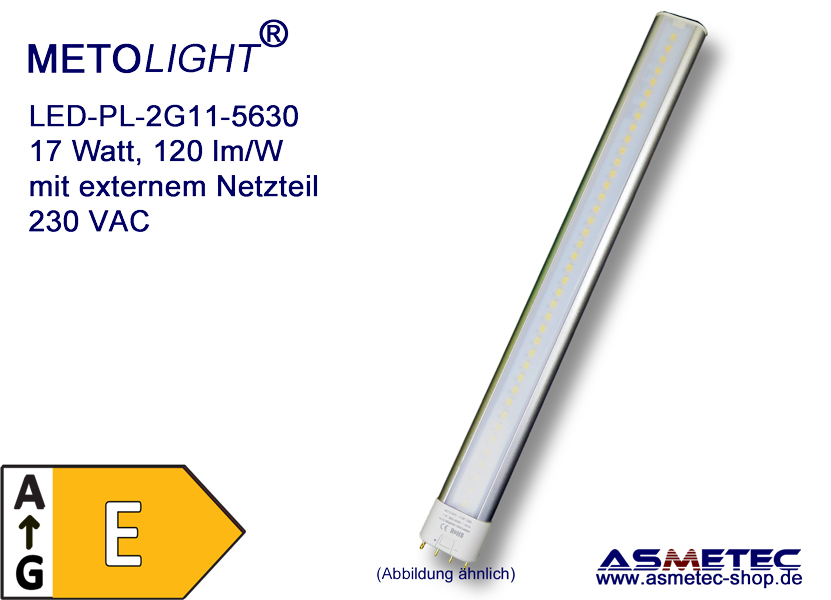

LED-PL-tube, 2G11-17E-5050, 230 Volt, cold white, 17 Watt, E
METOLIGHT LED compact tube 2G11, 230 V AC, 17 Watt
LED compact tube with base 2G11 as a substitute for 36 Watt CFL compact tubes
equipped with extra bright Lextar SMD LEDs type 5050., cold white 6000KRobust LED compact tube with aluminum heat sink and external power supply for 24/7 continious operation.
Application: in luminaires with compact tubes and base 2G11. Existing ballast must be removed.
Dimensions: 405 mm long (without pins), 40 mm wide, 20 mm deep, about 440 g.
Light angle 140 °, <1250 lm (cool white)
Available from stock in light color cool white (6000K)
Average LED lifetime about 35,000 hours, low heat development, even in continuous operation.
Because these compact LED tube do not radiate UV light nor infrared light it ideal for lighting in shops, because colors do not fade, products do not become brittle.
Installation:
The connection to the 230 Volt mains using the supplied constant current power supply 10-26 VDC 700 mA
Optionally at additional cost a dimmable power supply is available. The existing ballast in luminaire must be replaced by a qualified electrician to the supplied AC adapter.
Operation directly to 230V, to an electronic ballast or dimming actor is not possible.

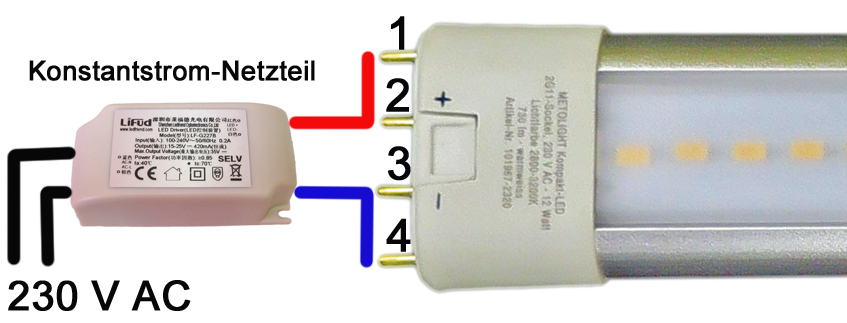

The two outer pins are connected to the supplied power adapter, please pay attention to correct polarity (See imprint lamp).
The conversion of luminaire must be performed by a qualified electrician. Existing type testing of the lamp will be lost, the electrician will have to confirm the compliance of its work to the customer.
Please note our technical data sheet
Warranty:
In this PL tube, we grant 2 years warranty (see warranty conditions)
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LED-PL-2G11-17E-5050 | Model |
| Anschlussspannung | 180 - 240 V AC - ext. Netzteil / ext. driver | Mains Voltage |
| Betriebsspannung | 10-26 V DC - 700 mA | Input Voltage |
| Gesamtleistung | ~ 16,7 Watt | Input Power |
| Leistungsfaktor | Pf > 0,95 | Power factor |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | Lextar SMD 5630 | Light Source |
| Energieklasse | E | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 140° | Beam Angle |
| Lichteffizienz | > 95 lm/W | Light Efficacy |
| Warmweiss | 2700 - 3000K - 1340 lm - Ra > 80 | Warm White |
| Neutralweiss | 3800 - 4200K - 1400 lm - Ra > 80 | Neutral White |
| Kaltweiss | 5800 - 6500K - 1350 lm - Ra > 80 | Cold White |
| Entspricht PL-Röhre | ~ 36 Watt | Compares to PL-Tube |
| LED-Lebensdauer | ~ 35.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 100.000 | Switch Cycles (on/off) |
| Sockel | 2G11 | Base |
| Lampenkörper | Aluminium / PMMA | Bulb Body |
| Abmessung | 405 x 43 x 20 mm | Sizes |
| Gewicht | 460 gr | Weight |
| Zuläss. Betriebsbedingungen | -20 ~ +40°C / 10-90% rH | Evironm. Conditions |
| EU-Richtlinien | PSG 2001/95/EG, ErP 2009/125/EU, NRS/LVD 2014/358/EU, EMV/EMC 2014/30/EU, RoHS 2011/65/EU | EU-Rules |
| CE-Konform nach | EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012 | CE-conform acc. to |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweise | Bitte beachten Sie unser technisches Datenblatt / please note our technical data sheet | Notes |
