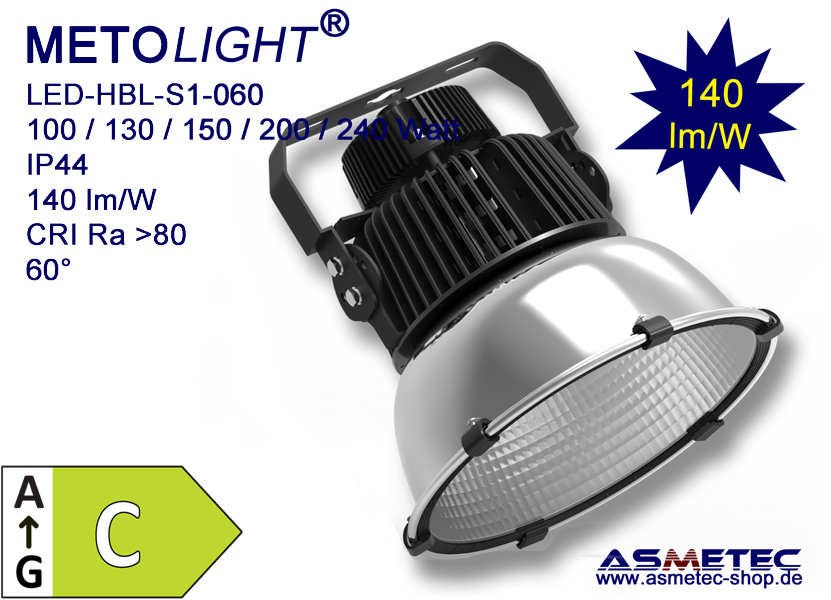

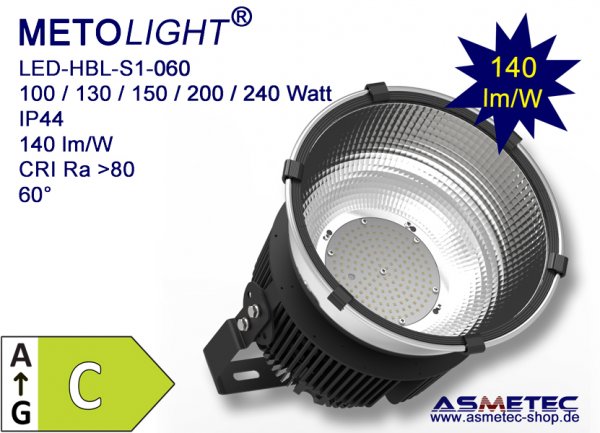

METOLIGHT HBL-S1-100-CW, 100 Watt, cold white, 60° beam
Compact Hibay-Light, IP44, Beam Angle 60°, 14000 lm,
The new design of our high bay light series HBL-S1 combines highly efficient Philips SMD 3030 LEDs 140 lm/W, Meanwell LED driver, IP protection class IP44 in a compact cast aluminum housing with high gloss, antiglare aluminium reflector with 60° beam.
The light beam is approximately 60° ideal for mounting heights of 6-10 m. This luminaire can replace a 200 W HQI lamp.
Upon request this highbay light can be supplied with 25° / 45° / 90° or 120° light beam angle
The newly developed Meanwell LED driver corresponds to the IP class IP65, is at power factor Pf> 0.95 and belongs to the best power supplies available. It is easy to replace in case of damage. The LED-PCB can be easily replaced by an electrical technician.
Installation is simple with steel rope or chain with carabiner for hooking into the supplied eyebolt. Optionally, this luminaire can be delivered with motion sensor.
The lamp driver includes a thermal control deviced which cuts down the light ion case of over heating and auto revocers when cooled down.
Applications:
Lighting in warehouses, assembly halls, work areas, covered loading ramps
Sales halls, supermarkets, shopping malls, sports halls
Dimensions:
Diameter: 350 mm, height 415 mm (incl. hook)
Weight approx 4,5 kg
Main Technical Data:
Voltage range: 90-277 VAC
Power consumption: 102 W
Energy Class C
Light color: 5800-6500K (optional 4000-4500K or 3000-3500K)
CRI Ra> 80
IP44
Luminous flux > 14000 lm (pure white)
Nominal service life: 30,000 hours
Warranty:
We offer 5 years limited warranty (see warranty conditions).
Lead time:
We stock only few samples. For bulk orders please allow a lead time of about 4 weeks.
Special versions (other CCT, beam angle, wall bracket, frosted glass etc) are available upon request ad additional charge. please contact us for more details.
