LED-Highbay-Light HBL-4Way-240-PW-60, 240 Watt, 33600 lm

METOLIGHT HBL-4Way-240-PW-60, 240 Watt, pure white

Adjustable Hibay-Light, IP65, Beam Angle 60°, 33600 lm

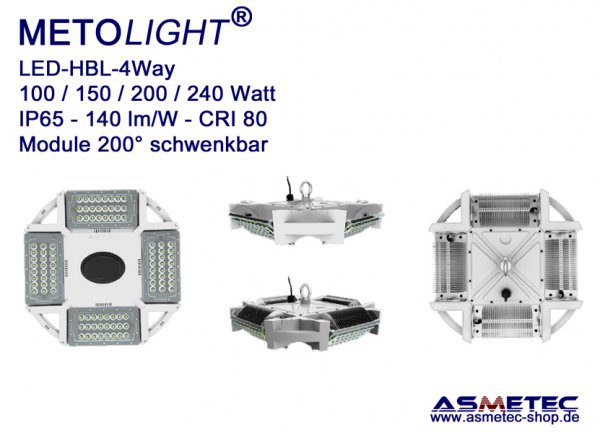

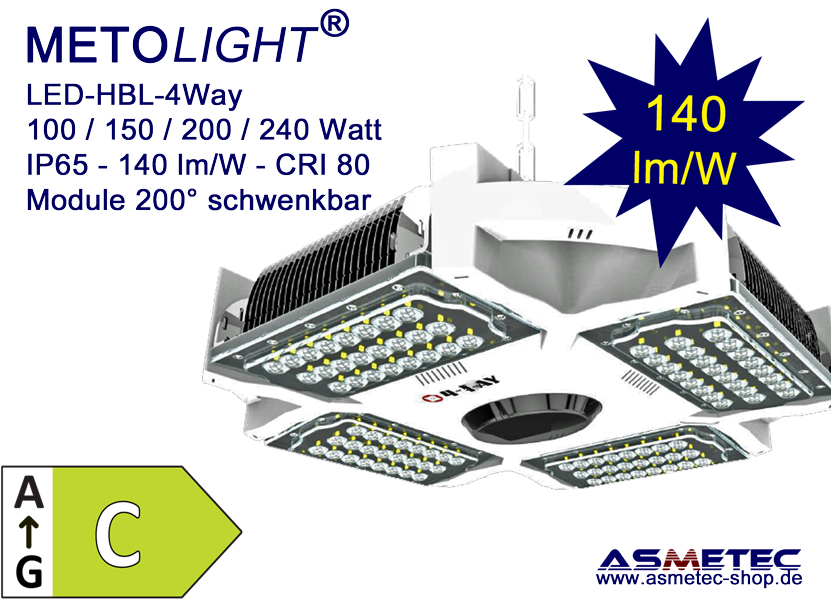

The new design of our high bay light series HBL-4Way combines 4 adjustable LED-Modules with highly efficient Philips Lumileds LEDs, Meanwell LED driver, IP protection class IP65 (dust-proof, hose-proof) in a very compact cast aluminum housing, white, RAL 9010 powder coated.

The 4 LED modules can be tilted 200° without tools in 16 steps (12.5° per grid) in order to achieve optimum illumination at different mounting heights. The highly efficient LEDs (grouped into 24 clusters per LED module) are protected against dust and splash water by a plastic lens (standard light angle 60°). Depending on the performance, the modules have aluminum peaks or cooling fins for heat dissipation.

The LEDs have an efficiency of 140 lm/W with CRI Ra> 80 and thus correspond to the energy class C.
The average life time is over 40,000 hours. Compared to conventional highbay luminaires with metal high-pressure lamps, energy savings of up to 80% are achieved.

The highbay light has an integrated surge protection 4kV.
A HBL-4Way-150 Watt replaces a 400 Watt HQI luminaire, whose gross power consumption including ballast is usually well above 500 watts.

Optionally, the highbay luminaires can be equipped with adjustable sensors (motion detector, daylight sensor), thus enabling automatic switching on or dimming.

We supply the new HBL-4Way series in wattages of 100 / 150 / 200 / 240 Watt in light color 5000K pure white.
The light colors 3000K, 4000K and 6000K are also available as an option.
The individual LED modules as well as the power supply can be exchanged quickly and easily in case of repair.

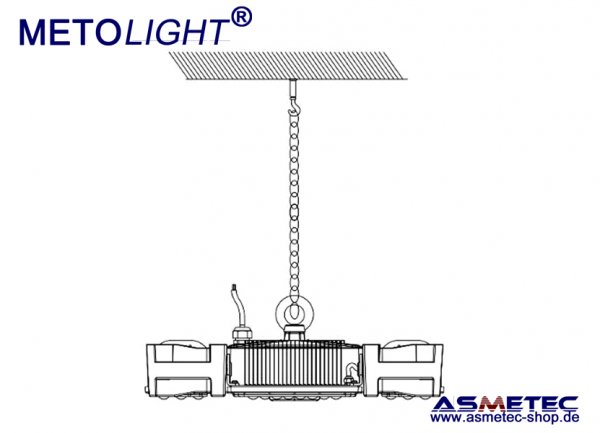

The assembly is easy via steel cable or chain with carabiner (not included in the scope of delivery) for mounting in the included eye bolt.

Installation is simple with steel rope or chain with carabiner for hooking into the supplied eyebolt.

Applications:
Lighting in warehouses, assembly halls, work areas, covered loading ramps
Sales halls, supermarkets, shopping malls, sports halls

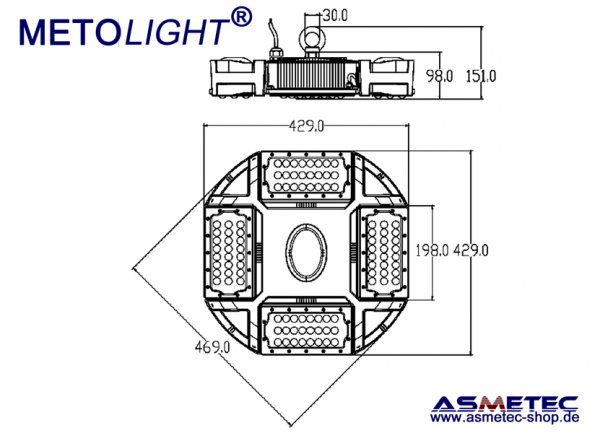

Dimensions:
Diameter: 469 mm, height 98 mm (without hook)
Weight approx 5,2 kg

Main Technical Data:
Voltage range: 90-277 VAC
Power consumption: 245 W
Surge protection 4kV
Energy Class C
Light color: 4800-5300K (optional 3800-4300K or 2700-3500K)
CRI Ra> 80
Luminous flux> 33600 lm (cool white)
Nominal service life: 40,000 hours

Warranty:
We grant a limited warranty of 3 years on this luminaire (see warranty conditions).
Delivery times:
We stocked some patterns. For quantities orders please expect a delivery time of approx. 4 weeks. Special versions (other light colors, other light angles, wall brackets, sensors) are available at an extra charge. Please contact us if necessary.
Light calculation:
IES data for the light calculation in Dialux or Relux we send you free of charge. We perform light calculations as service on charge which is refunded when ordering such lights
