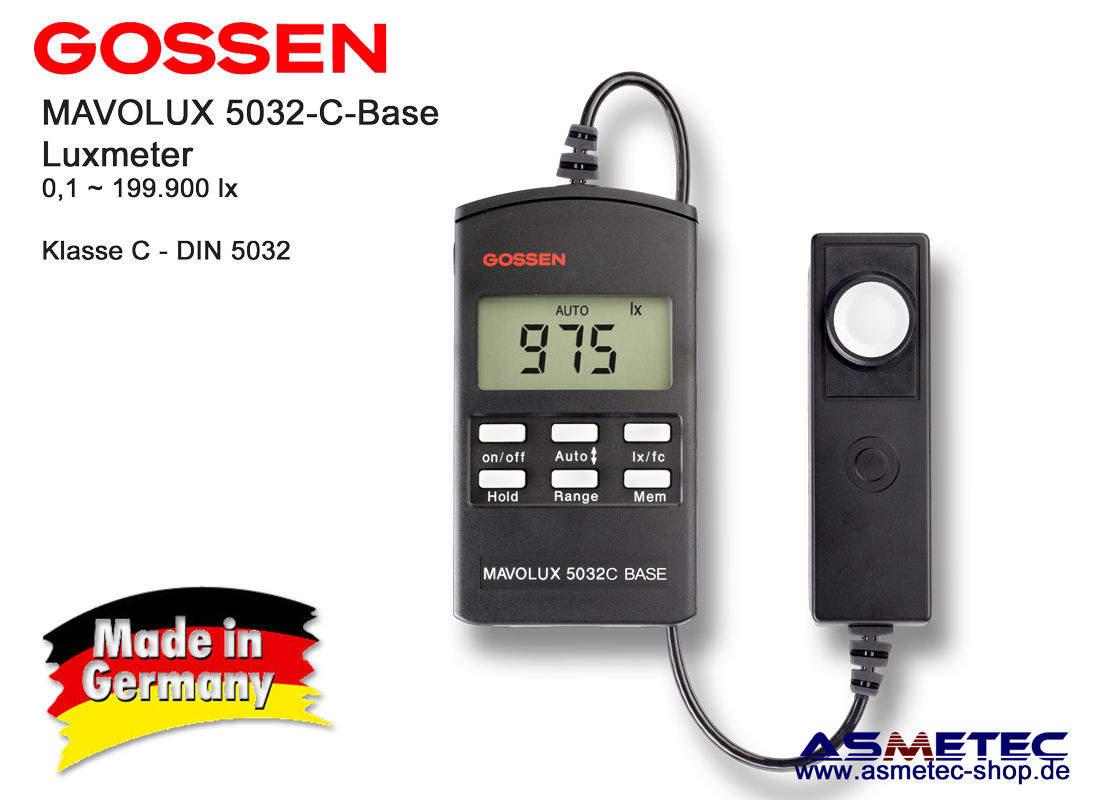

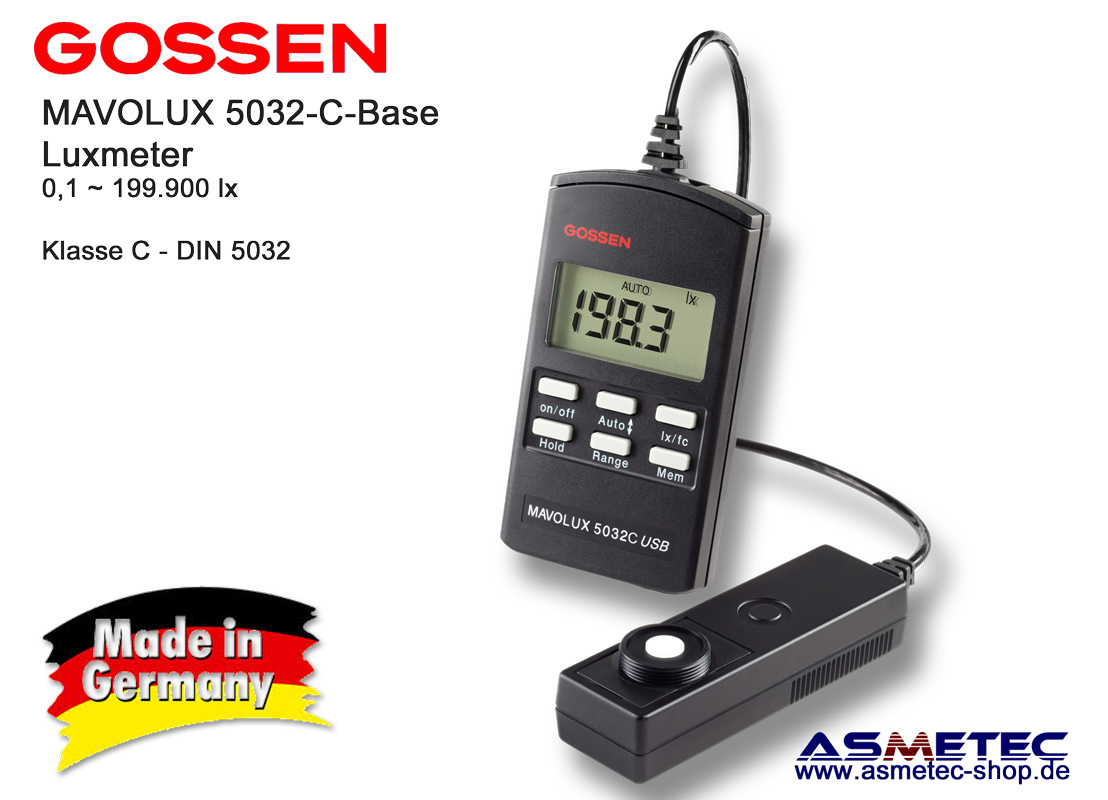

Gossen Mavolux 5032 C Base-ASM - class C - DIN 5032 Luxmeter

Gossen MAVOLUX 5032 C-BASE-ASM | Class C DIN 5032 high precision Luxmeter

Special ASM edition includes a package of useful accessories, exclusively only available from Asmetec

Specification
Precision Luxmeter classified according class C in accordance with DIN 5032-7, appendix B of EN 13032-1 and CIE S 023. The high-end V(λ) matching and cosine correction guarantees the reliably measure for illuminance of daylight and artificial sources of light. Even in the case of very bright sunlight or illumination from headlights, no accessories are required.
Versatile applications:
as inexpensive basic measuring device - planning, installing, inspection, repair and monitoring of lighting systems - assurance of compliance with specified light conditions
Illuminance Maximum reliability – Classified measurement of illuminance in lx or fc in accordance with class C per DIN 5032-7, appendix B of EN 13032-1 and CIE S 023..
Precise Measured Values – Accuracy amounts to ± 3% ± 1 digit of the display value.
Broad measuring range – High initial sensitivity and a resolution of 0.1 lx or 0.01 fc, right on up to large illuminance values of 199,900 lx or 19,990 fc.
Calibration Capability – As an option, the accredited GOSSEN Light Lab can issue a factory or a DAkkS calibration certificate for measuring equipment monitoring in accordance with DIN EN ISO 9001:2008
 V(λ) matching – The spectral sensitivity of the silicon photodiode is color corrected and corresponds to the spectral brightness sensitivity of the human eye V(λ).
Cosine correction – The luminosity of a flat measuring surface is proportional to the cosine of the incident angle of light. This relationship is taken into consideration by the receiver during evaluation
Individual calibration – Each spectrometer is subjected to photometric and radiometric calibration prior to shipment. A simple calibration report is included in the scope of delivery.
Non-volatile memory – 100 measured values can be saved and retrieved
Convenient daily use – Highly practical one-hand operation with the ring controller and just a few keys, easily legible color display with high resolution, compact design, protected transport in a high-quality aluminum case.


Special ASM accessories included free of charge:
Clean room wipes, clean room gloves, Touch-Light-Pen, 5 year free of charge compare check


Scope of delivery:
Luxmeter, Battery, operating instructions, light-tight, protective cover cap ASM special accessories


Optional Accessories:

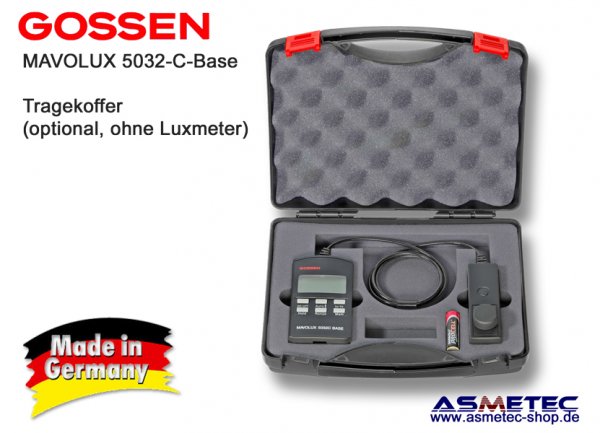

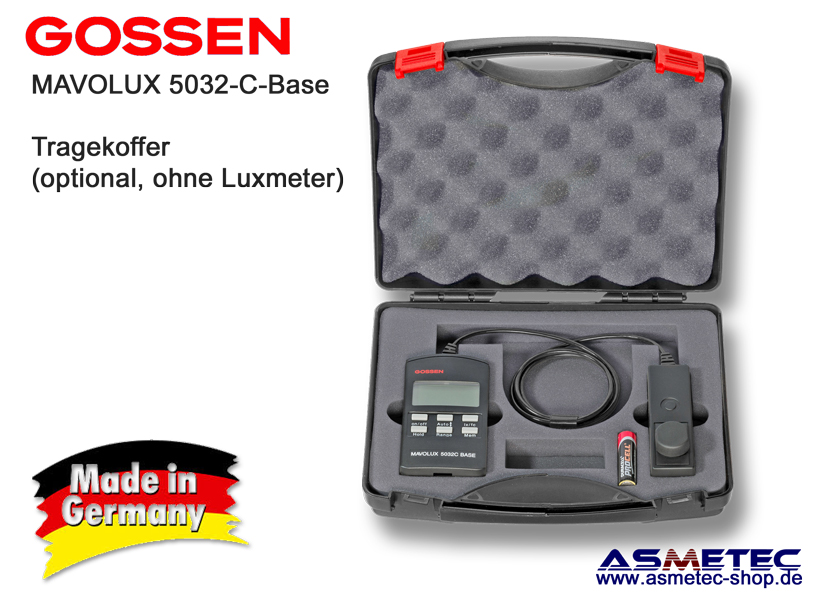

Plastic Carrying Case with suitable foam inlet. Dimensions approx. 275 x 225 x 80 mm
DAkkS Calibration certificate

Synonyms:
Luxmeters are also known as light illuminance meter, light meter, brightness meter, light density meter
