Camera adapter ToupTek FTA050 for telescopes

Touptek FTA050Adapter Telescope 31,75 mm -> C-Mount, 0,50x, fixed focus

adapter to be used with USB-Cameras and C-Mount

This telescope to C-Mount adapter is needed for USB-camera with C-mount thread (ISO 10935: 1996) if the camera is used in telescopes with tube diameter 31.75 mm.

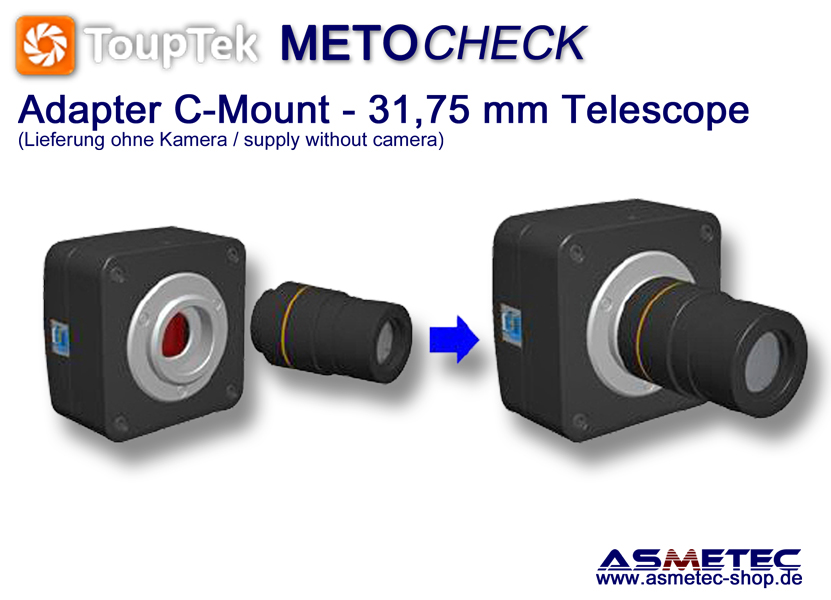

The adapter is screwed into the C-Mount of the camera and then inserted instead of the eyepiece into the telescope.
The adapter ist for field 18x0,50 mm has a magnification of 0,50 x and is mainly used to CMOS sensors in size from 1/2" to 2/3".
Other versions with manual focus are available as well as adapter rings with outer diameter of 30,0 mm and 30,5 mm to be used with telescope tubes.


Main technical data:

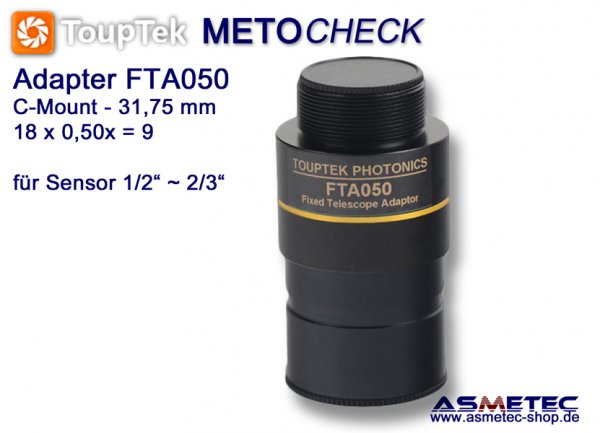

ToupTek adapter FTA050
C-Mount of telescope tube 31,75 mm
Suitable for CMOS-Sensor 1/2" to 2/3"
Field 18 x 0.50
Magification 0,50x
Focus: fixed focus, parfocal
