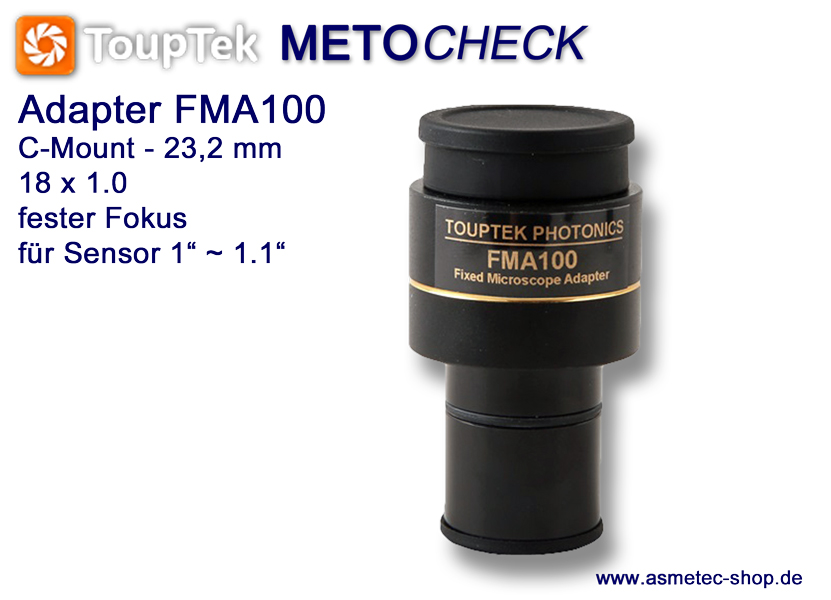

Camera adapter ToupTek FMA100

Touptek FMA100 Adapter eyepiece => C-Mount, 1.0x, fixed focus

adapter to be used with USB-Cameras and C-Mount

This eyepiece to C-Mount adapter is needed for USB-camera with C-mount thread (ISO 10935: 1996) if the camera is used in microscopes with eye-piece tubus 23.2 mm diameter.

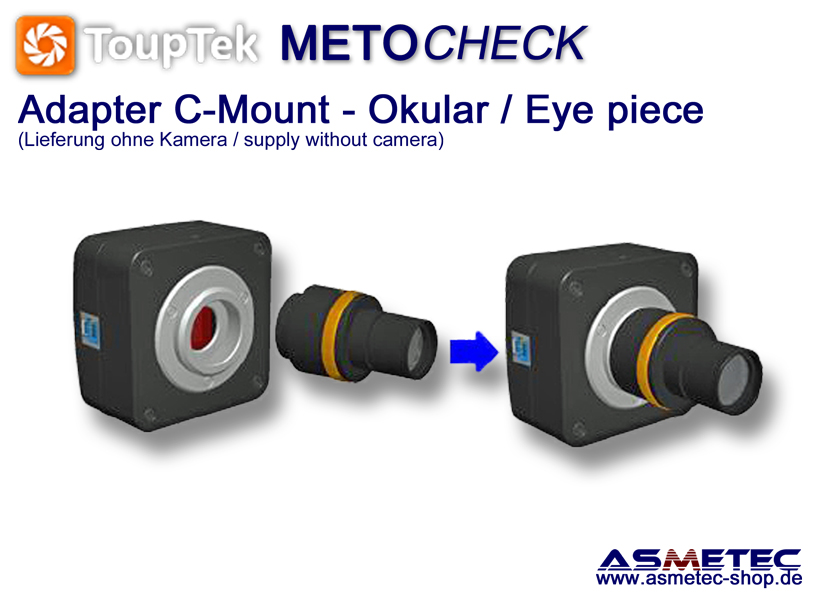

The adapter is screwed into the C-Mount of the camera and then inserted instead of the eyepiece into the microscope..
The adapter is suitable for field 18x1 mm and has a magnification of 1.0 x and is mainly used to CMOS- and CCD sensors in size from 1" to 1.1".
Other versions with adjustable focus are available as well as adapter rings with outer diameter of 30,0 mm, 30,5 mm and 31,75 mm to be used with telescope tubes.


Main technical data:
ToupTek adapter FMA100
C-Mount ot eyepiece 23,2 mm
Suitable for CMOS- / CCD-Sensor 1" to 1.1"
Field 18 x 1.0
Magification 1.0x
Focus: fixed focus, parfocal
