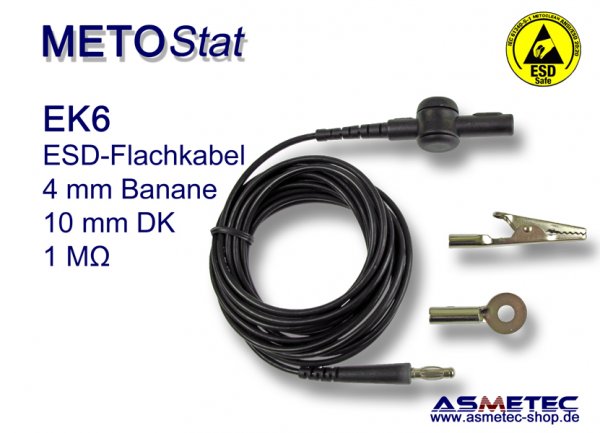

ESD cord EK6 - versatile connections
METOSTAT grounding cord EK6
Straight versatile grounding cord for table and floor mats
Solid grounding Straight Cable for table and floor mats with versatile connection options.
One end of the cable has a combination plug with 10 mm snap, cascadable, and a 4 mm banana socket. Herein is also the cast 1MOhm protective resistor.
The other end has a 4 mm banana plug. In this the included eyelet or the crocodile clip can be plugged.
robust straight cord, black, 1,5 m length
1 MOhm resistor
Colour: black
Typical resistance R = 1 x 106 Ohm
Complies with DIN EN 61340-5-1
