ESD-Terminal EBOX3, 1 x 10 mm snap, 2 x 4 mm banana socket

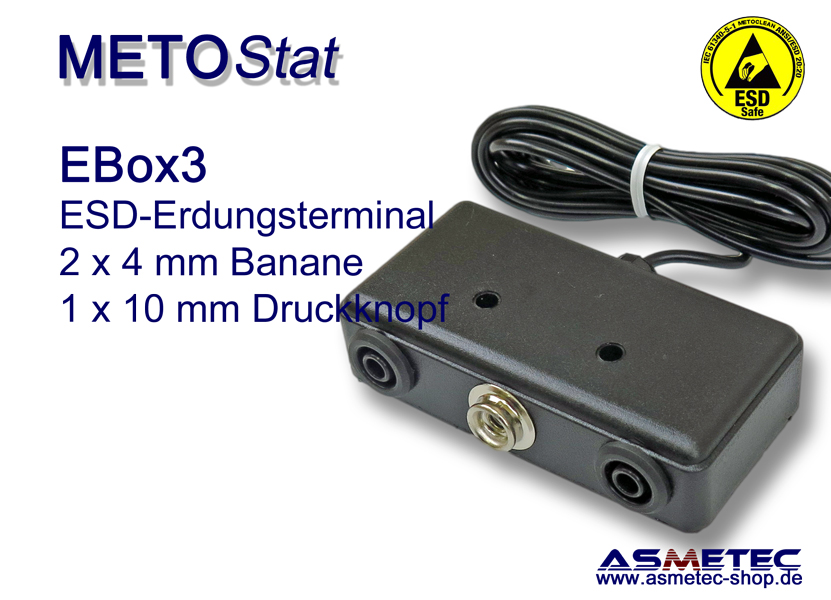

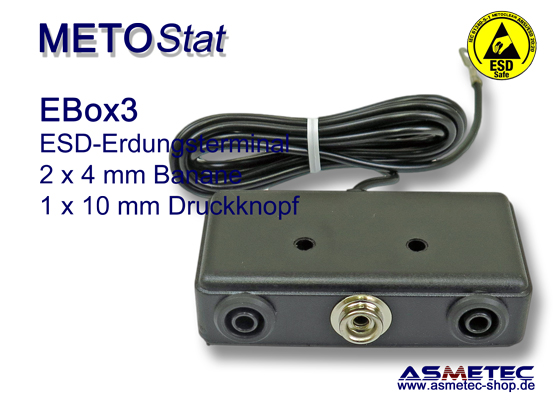

METOSTAT ESD Grounding Box EBox3

Grounding terminal with 2 m straight grounding cord

1 x 10 mm male snap, 2 x 4 mm banana socket

Grounding terminal made of dissopative black plastic with 2 x 5 mm holes for screw fixcing on wall or table, equipped with 2 m straight grounding cord with 4 mm cable eye.

This ESD grounding terminal is used for grounding of work benches and personal grounding via wrist straps and coil cords. The grounding cord is to be connected with earth. The 3 outlets at the front are connected with a 1 MOhm resistor to the grounding wire.

Sizes: 80 x 40 x 20 mm (L x W x H)
Weight: about 70 gr


Typical installation:
ESD table mat is connected by a grounding cord to the grounding box. The person is grounded via a wrist band which is connected via a ground coil cord with either the table mat or grounding box.

Note:
Please pay attention to the size of the snaps on the wrist bands, the table mat and the grounding plugs. Usually, the contacts come with snaps 4 mm, 7 mm and 10 mm or 4 mm banana plug / socket. Wrist straps, floor- and table mats, grounding plugs have mostly male snaps, the grounding cables are equipped with female snaps.
