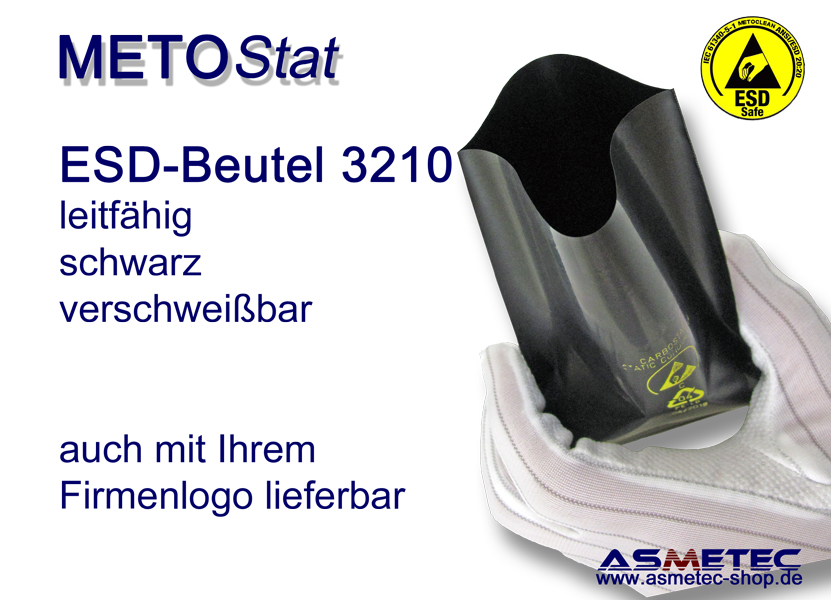

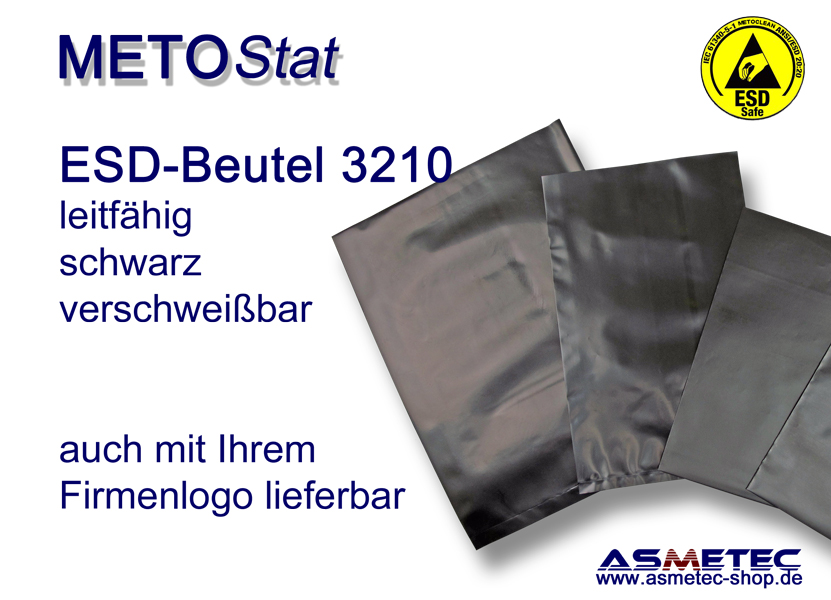

ESD Conductive bag 3210, 150 x 225 mm, 100 bags per package

METOSTAT ESD bag 3210, 150 x 225 mm, 100 bags

ESD conductive bag, polyethylen, sealable

black ESD bag made of 0,08 mm thick carbon loaded, volume conductive polyethylene.

Single layer dissipative polyethylene, 80 microns. The bags can be sealed by heat.
This very stable, tear-proof conductive bags are used in the electronics and assembly industry for the packaging of printed circuit boards, electrical components and other parts.
We supply these ESD packing bags in different sizes in sale units of 100 bags.
By default, the bags are printed with our name, ESD-signs and instructions.
On request, we can also print the bags with your company logo and other customizations print (minimum quantity 10.000 bags).
Customised sizes according your request can be manufactured short timed.

The ESD bag in accordance with the RoHS Directive, are free of heavy metals such as cadmium, lead, mercury, chromium IV, etc.
The ESD bag comply with the requirements of EN 61340-5-1



Technical specifications:
Dimensions: 150 x 225 mm
Thickness about 80 microns
Tensile strength: 55 MPa
Light transmittance: 0%
Surface resistance R_s 1 x 10⁴ ~ 1 x 10⁵ ohms

Sales unit: 100 bags
