USB-Camera Touptek E3CMOS-02300KPA, 2,3 MPix, USB 3.0

Touptek E3CMOS-02300KPA, USB 3.0 microscope camera, 2.3 MPix

METOCHECK edition with tightest tolerances, each camera is tested inhouse at Asmetec

EM-Code ToupCam E3CMOS02300KPA


comes with C-mount, SONY Exmor back-illuminated CMOS sensor IMX287M-GS, USB3.0 interface, extra high sensivity

The USB camera with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The software supplied with multi lingual user interface allows measurements (lengths, areas, angles, circles etc.) as well as image comments, frame and movie captures - ideal for quality control and assurance, use as a teaching tool for demonstration purposes and presentations, school, hobby and profession.

The integrated SONY Exmor CMOS sensor IMX185C, 1/1.9" (7.20 x 4.50 mm) with greatly improved picture geometry, contrast and sensitivity presents itself edge regions with absolute sharpness is in pixel size of 3.75 x 3.75 µm. The Sony Exmor sensor has the highest sensitivity and lowest noise with the help of 2 CDS(correlated double sampling) procedure. This feature guarantee that the E3CMOS camera is perfect for fluorescence microscope application, astronomy application and other dark field application, as well as the bright field application. E3CMOS camera can be used to replace the traditional CCD camera to some extent since its unique features, including high sensitivity, low noise, and group shutter (only some sensor has group shutter). Thanks to USB3.0, the frame rate is fast and 8bit, 12/14bit data transfer can be available and switchable.Through USB 3.0 fast comes data transfer and power supply via a single cable. An integrated IR filter protects the sensor.
​The camera operates with no moving parts. It is embedded in a robust cast aluminum housing and is in precision and robustness many other industrial cameras clearly superior.

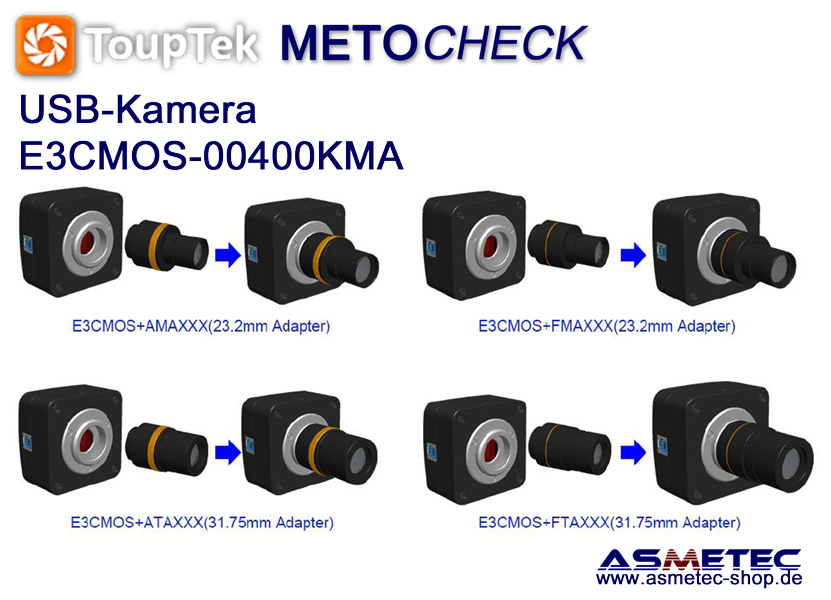

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series. Thanks to the fast USB 3.0 the camera has a high frame rate, the data transmission can be shifted from 8bit, to 12/14bit.

Camera adapters you can find here   We recommend adapter 0.50x for this camera

E3CMOS cameras come with the integrated CNC aluminum alloy compact housing and come with advanced video & image processing application ToupView, Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API.


The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
1 x METOCLEAN clean wipe
free after sale service

Main technical data:
Sensor: Sony Exmor IMX185C, CMOS, 2.3 MPix
USB-Port 3.0 (not suitable for 2.0)
G-Sensivity: 1020 mV with 1/30 s
Dark signal: 0,15 mV with 1/30 s
FPS/Resolution 38 fps - 1920x1200 px, 66 fps - 960 x 600 px
Exposure: 0.244 ~ 2000 ms
Pixel size: 3.75 x 3.75 µm
Binning: 1x1, 2x2
Data rate: 8bit 12/14 bit
Power supply: USB-Port 5 VDC
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

Supply:
USB-camera with C-Mount
USB-cable
Software
manual
