BETA MAG10, 10x, achromatic, aplanat

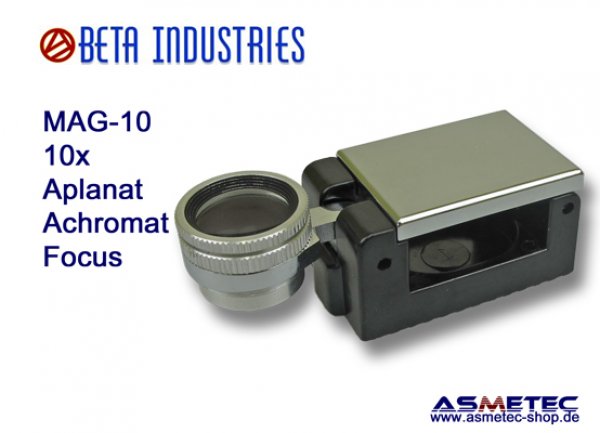

BETA MAG-10, 10x

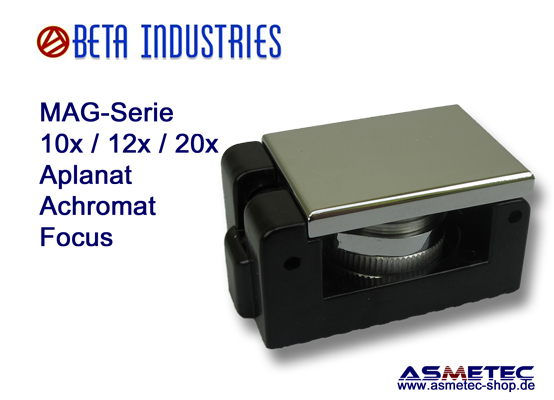

Foldable magnifier with aplanat, achromatic optical lens

The special design of Beta-MAG and -View magnifiers allows viewing objects also from a distance of 20 to 30 cm. The field of view, which is approximately 12 mm in applying the optics of the eye, reduced at a distance of about 20 centimeters to 3 mm and is completely free of distortion. (Distance 10 centimeters = field of view of about 5 mm).
Because of the color-corrected optics Beta magnifiers are widely used especially in the printing industry.
Even at a distance of 20 centimeters you clearly can see print dots. Ideal also for register control.
Another big advantage using the loupe at distance to the eye is that no shadow falls through the lens to the object to be inspected.
The loupes special designed lens system with anti-reflex coating and distortion free aplanatic lenses composed in 3 elements in 2 groups are ergonomic and easy on the eye.
It focused by turning the lens when held close to the eye. With a lock ring the lens can be fixed. Then the loupe is held at an optimum distance for the user.
To protect the optics, it can be folded into the housing after use.
This loupe is also available with magnificaion 12x and 20x

Magnification: 10x
Field of view: 12 mm
Focus: focussable
Scale: none
Optic: aplanat, distortion free
Sizes: 90 x 31 x 34 mm (l x w x h, opened)
Weight: 80 Gramm
