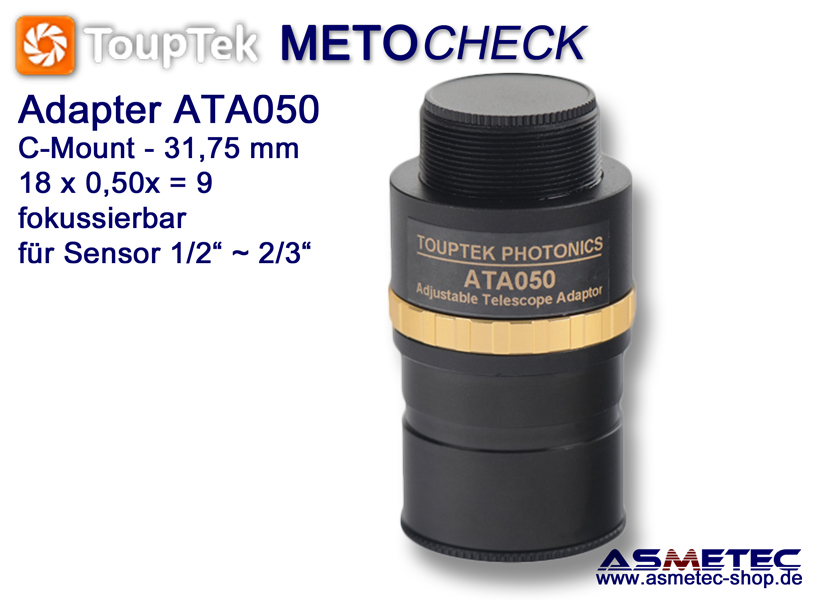

Telescope adapter ToupTek ATA050
ToupTek ATA050 Telescope Adapter 31,75 mm -> C-Mount, 0,50x, manual focus
adapter to be used with USB-Cameras and C-Mount and telescopes
This eyepiece to C-Mount adapter is needed for USB-camera with C-mount thread (ISO 10935: 1996) if the camera is used in telescopes with 31,75 mm tubus.

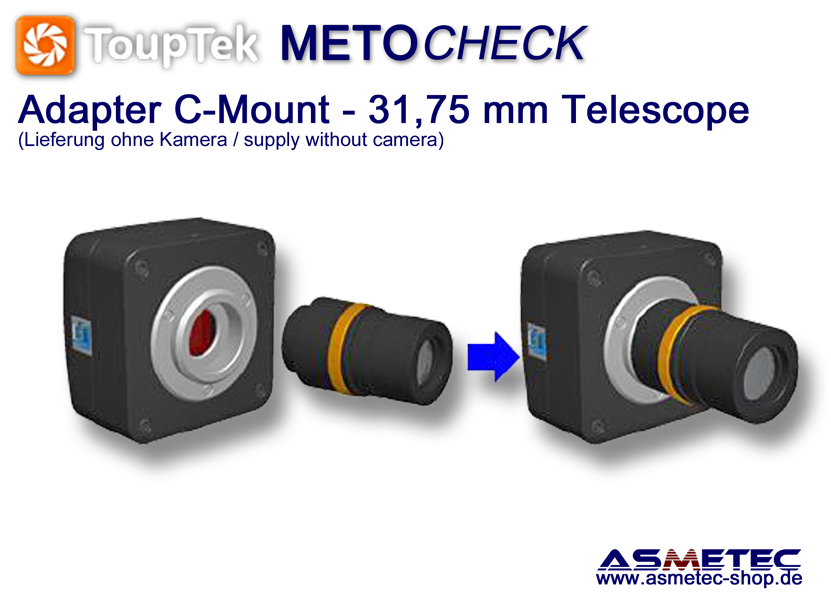

The adapter is screwed into the C-Mount of the camera and then inserted into the telescope tubus.
The adapter ist for field 18x0,50 mm has a magnification of 0,50 x and is mainly used to CMOS sensors in size from 1/2" to 2/3".
The ATA050 offers a manual focus
Other versions with fixed focus are available as well as adapter rings with outer diameter of 30,0 mm, and 30,5 mm to be used with telescope tubes.
Main technical data:
Touptek adapter ATA050
C-Mount to telescope 31,75 mm
Suitable for CMOS-Sensor 1/2" to 2/3"
Field 18 x 0.50
Magification 0,50x
Focus: manual adjustable ,parfocal
