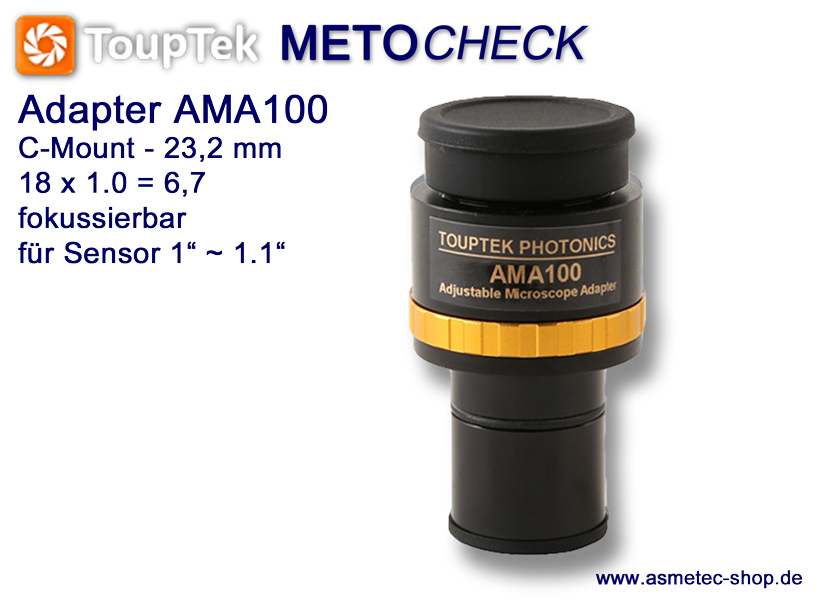

Camera adapter ToupTek AMA100

Touptek AMA100 Adapter eyepiece -> C-Mount, 1.0x, manual focus

adapter to be used with USB-Cameras and C-Mount

This eyepiece to C-Mount adapter is needed for USB-camera with C-mount thread (ISO 10935: 1996) if the camera is used in microscopes with eye-piece tubus 23.2 mm diameter.

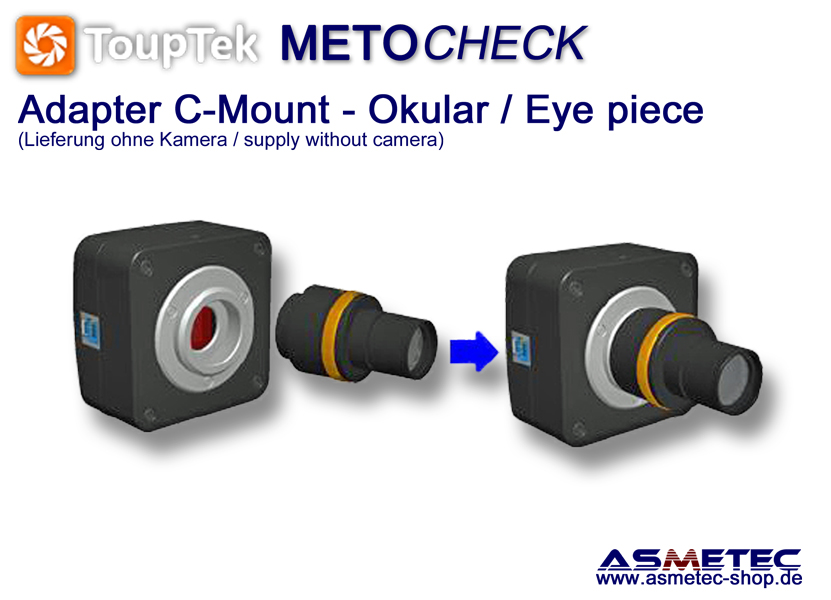

The adapter is screwed into the C-Mount of the camera and then inserted instead of the eyepiece into the microscope..
The adapter is suitable for field 18x1.0 mm, has a magnification of 1.0 x and is mainly used to CMOS and CCD sensors in size from 1" to 1.1".
The AMA100 offers a manual focus.
Other versions with fixed focus are available as well asa adapter rings with outer diameter of 30,0 mm, 30,5 mm and 31,75 mm to be used with telescope tubes.


Main technical data:
Touptek adapter AMA100
C-Mount ot eyepiece 23,2 mm
Suitable for CMOS and CCD-Sensor 1" to 1.1"
Field 18 x 1.0
Magification 1.0x
Focus: manual adjustable ,parfocal
