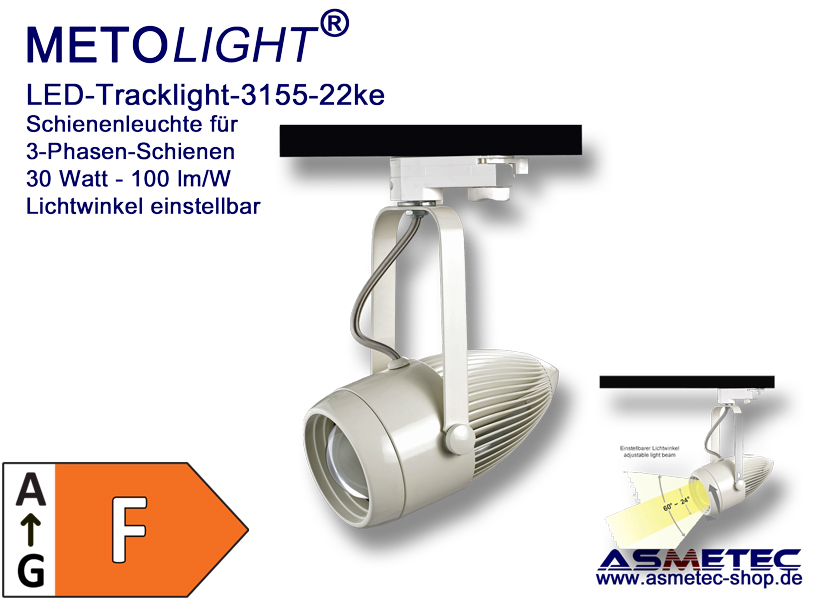

LED-Track Light 3155-22Ka-30, 30 Watt, warm white

METOLIGHT LED tracklight 3155-22Ka-30, 30 Watt, 2700 lm, warm white

LED tracklight for 3-phase track, 90 lm/W, CRI Ra >80, energy class F

All-round rotating and swivelling track light with CITIZEN-Japan COB LED chip with an efficiency of 90 lm/W at CRI Ra>80, corresponding to energy class A+. The housing of this rail-mounted spotlight is made of aluminium (in the luminaire body) and plastic (in the base part), slim, elegant design, horizontally approx. 350°, vertically approx. 90° rotable.
Our LED tracklights fit into the 3-phase tracks common in Europe, all luminaires have a switch in the base to switch the luminaire to one of the 3 circuit phases. The integrated LED driver supplies the LED chip with temperature-controlled constant current to ensure maintenance-free operation for many thousands of hours.


With a power consumption of 30 watts, the 3155-22Ka-20 track luminaire corresponds approximately to the brightness of a 200 watt halogen spotlight, an energy saving of over 80%. In addition, significantly longer maintenance intervals, which saves further costs. The investment in LED track lights has usually paid back within a year.
The light is flicker-free, free of UV-radiation, which means that illuminated objects do not fade or embrittle plastics. The heat generation is negligibly low compared to the usual halogen spotlights, which results in significant energy savings in shops, especially in the warm summer months, because air-conditioning systems no longer have to compensate for the heat output of conventional luminaires.

As standard we deliver this tracklight in light colour 4000K, nature white, housing colour white, with adjustable lens 24-60°.

Areas of application:
in 3-phase power rails for lighting in shops, boutiques, fashion, jewellery, decorative items, but also for accent lighting in museums, libraries, galleries, hotels, restaurants, bars, etc. Suitable track rails and connectors are of course also available in our product range.

Service:
The LED chip and the integrated power supply can be replaced quickly and inexpensively by ASMETEC even after the warranty period.
We create a simple light calculation in Dialux EVO for our customers free of charge.
We also offer IES data from our lighting laboratory for our own lighting calculations.

Technical data:
Power consumption: 30 Watt
Input voltage: 220 - 240 VAC - 50/60 Hz
Luminous flux warm white: 2700 lm
Light angle: 24-60° adjustable.
Track rail: 3-phase, not dimmable

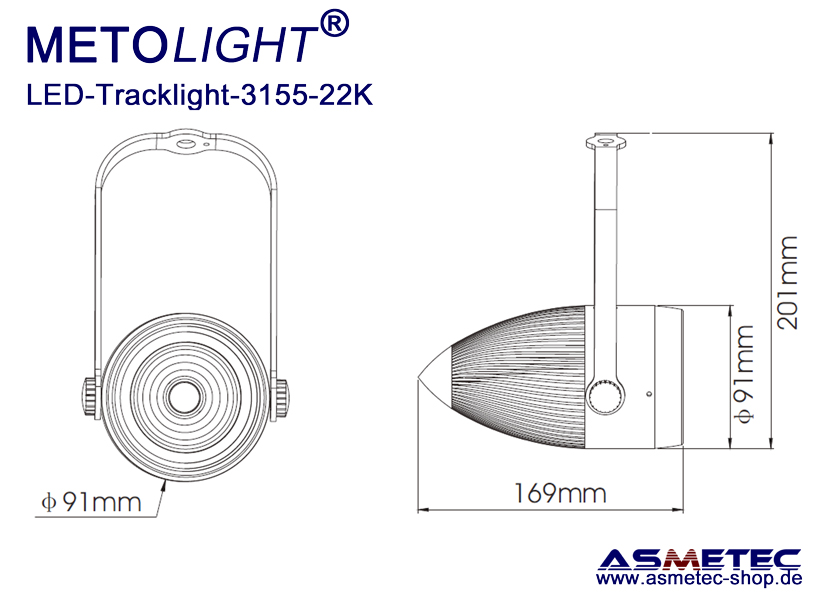

Dimensions: 91 x 169 x 201 mm (diameter x length x height)
Weight: approx. 1 kg

Warranty:
We grant a 3-year warranty on this LED tracklight light (see warranty conditions in the shop download area)

Asmetec quality:
Every single luminaire is tested for perfect function before dispatch at our factory in Kirchheimbolanden. On request, you can receive a test report from our photometry technology for each batch free of charge. We also create IES data for light calculation in our own lighting laboratory.

Dealers and bulk buyers:
Please ask for our current project price

Synonyms:
LED track luminaires are also known as swivel-mounted LED luminaires, tracklights, rail spotlights, swivel-head luminaires, cardan luminaires.
